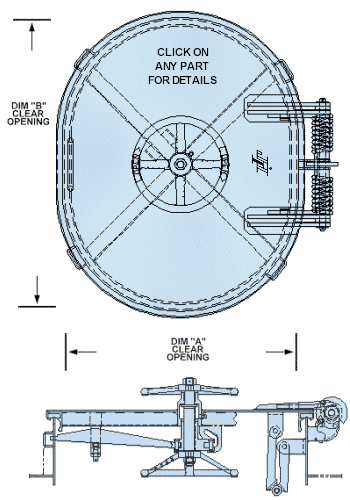

HATCH, RAISED, OVAL,
WTQA, SPRING BALANCED
JE6021

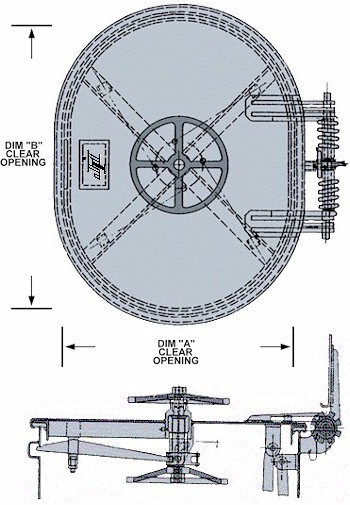

Hatch, Raised, Oval, WTQA
GENERAL NOTES:
  1. SPECIFY CLEAR OPENING DIMENSIONS "A" AND "B"
  2. COAMING HEIGHT 6" STANDARD (FOR EXTERIOR USE)
  3. HINGED LONG SIDE STANDARD
  4. PANEL AND COAMING:  STEEL
  5. HARDWARE:  VARIOUS
  6. STANDARD FINISH:  INORGANIC ZINC
    AND FORMULA 150 PRIMER
  7. FLAME SPRAYED ALUMINUM COATING
    I.A.W. DOD-STD-2138
    AVAILABLE FOR EXTERIOR INSTALLATION
  8. ALTERNATE MATERIALS AVAILABLE



JUNIPER HATCHES
HATCH, RAISED, OVAL,
WTQA, SPRING BALANCED

TO GET A QUICK PRICE QUOTATION
USE THE FORM BELOW OR CLICK HERE FOR A GENERIC FORM
SIZE &
NAVSEA STD
TEST PRESSURE
QUANTITY
HATCH MATERIAL       STEEL
    STAINLESS STEEL
    STAINLESS STEEL (MINESWEEPER REQUIREMENTS)
    ALUMINUM
    ALUMINUM (MINESWEEPER REQUIREMENTS)
    GRP
    OTHER (SPECIAL INSTRUCTIONS BELOW)
HINGE PLACEMENT       SHORT SIDE
    LONG SIDE
COAMING HEIGHT
GASKET MATERIAL       MIL-R-900 NEOPRENE (BLACK)
    AA-59588 CL 3B GR 30 SILICONE (ORANGE)
    OTHER (SPECIAL INSTRUCTIONS BELOW)
FINISH       INORGANIC ZINC &
          FORMULA 150 PRIMER (INTERIOR USE)
    FLAME SPRAYED ALUMINUM &
          FORMULA 150 PRIMER (EXTERIOR USE)
    FORMULA 150 PRIMER ONLY
    NO FINISH
    OTHER (SPECIAL INSTRUCTIONS BELOW)
HASP AND STAPLE
