JUNIPER HATCHES


Our automated information request service is temporarily unavailable.  Please contact us by fax or phone while we work to improve this website.  Sorry for the inconvenience.

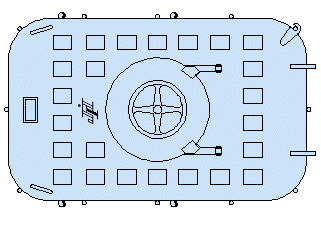

HATCH, RAISED, WT WITH OPTIONAL SCUTTLE
JE6303-HRS

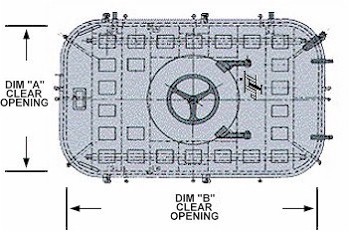

Hatch, WT with optional scuttle
Hinge AssemblyDrop Bolt Assembly

GENERAL NOTES:
  1. DIM "A" AND "B" TO BE SPECIFIED
  2. OPTIONAL SCUTTLE DIAMETER TO BE SPECIFIED
  3. HINGED:  SHORT SIDE STANDARD
  4. MATERIAL:  STEEL
  5. HARDWARE:  VARIOUS
  6. SPECIFY NUMBER OF DOGS AND TEST PRESSURE
  7. HATCH COAMING:  6" STANDARD
  8. SCUTTLE COAMING:  1-1/2" STANDARD
  9. SCUTTLE TEST PRESSURE IS EQUAL TO OR GREATER THAN HATCH TEST PRESSURE
  10. STANDARD FINISH:  INORGANIC ZINC
    AND FORMULA 150 PRIMER
  11. FLAME SPRAYED ALUMINUM COATING
    I.A.W. DOD-STD-2138
    AVAILABLE FOR EXTERIOR INSTALLATION
  12. ALTERNATE MATERIALS AVAILABLE
www.christopherswartz.com

JUNIPER HATCHES
HATCH, RAISED, WT WITH OPTIONAL SCUTTLE

TO GET A QUICK PRICE QUOTATION
USE THE FORM BELOW OR CLICK HERE FOR A GENERIC FORM

SIZE &
NAVSEA STD
TEST PRESSURE
QUANTITY
HATCH MATERIAL       STEEL
    STAINLESS STEEL
    STAINLESS STEEL (MINESWEEPER REQUIREMENTS)
    ALUMINUM
    ALUMINUM (MINESWEEPER REQUIREMENTS)
    GRP
    OTHER (SPECIAL INSTRUCTIONS BELOW)
HINGE PLACEMENT  www.epgguide.com     SHORT SIDE
    LONG SIDE
COAMING HEIGHT
GASKET MATERIAL       MIL-R-900 NEOPRENE (BLACK)
    AA-59588 CL 3B GR 30 SILICONE (ORANGE)
    OTHER (SPECIAL INSTRUCTIONS BELOW)
SCUTTLE SIZE
SCUTTLE HINGE
ORIENTATION   		    SAME AS HATCH HINGE
    OTHER (SPECIAL INSTRUCTIONS BELOW)
SCUTTLE STYLE       RAISED
    FLUSH
FINISH       INORGANIC ZINC &
          FORMULA 150 PRIMER (INTERIOR USE)
    FLAME SPRAYED ALUMINUM &
          FORMULA 150 PRIMER (EXTERIOR USE)
    FORMULA 150 PRIMER ONLY
    NO FINISH
    OTHER (SPECIAL INSTRUCTIONS BELOW)
HASP AND STAPLE

SPECIAL INSTRUCTIONS




YOUR CONTACT INFORMATION

FIRST NAME
LAST NAME
TITLE
ORGANIZATION
ADDRESS
CITY  (OR "FPO")
STATE
POST CODE
COUNTRY
PHONE
FAX
EMAIL ADDRESS
