JUNIPER HATCHES

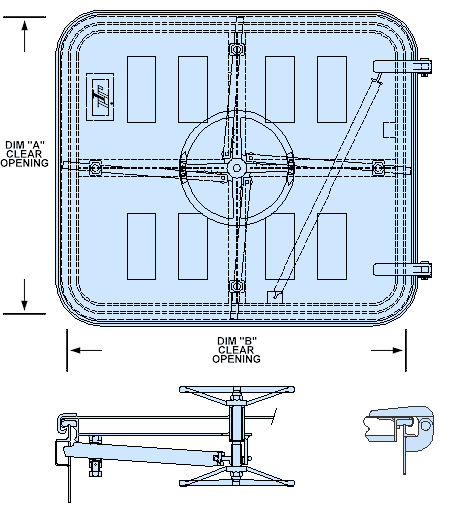

Hinge Hinge Dogging Mechanism Dogging Mechanism Dogging Mechanism Dogging Mechanism Hinge

HATCH, RAISED, WTQA
JE6120-HR
Hatch, Raised, WTQA
GENERAL NOTES:
  1. DIM "A" AND "B" TO BE SPECIFIED
  2. COAMING HEIGHT 6" STANDARD
  3. HINGED:  SHORT SIDE STANDARD
  4. PANEL:  STEEL FOR 805 SERIES, STAINLESS FOR 803 SERIES
  5. HARDWARE:  VARIOUS
  6. STANDARD BEARINGS:  SELF-LUBRICATING STAINLESS STEEL
  7. STANDARD FINISH FOR 805 SERIES:  INORGANIC ZINC
    AND FORMULA 150 PRIMER
  8. FLAME SPRAYED ALUMINUM COATING
    I.A.W. DOD-STD-2138
    AVAILABLE FOR EXTERIOR INSTALLATION OF 805 SERIES HATCHES
  9. STAINLESS STEEL 803 SERIES STANDARD FINISH IS FORMULA 150 PRIMER
  10. ALTERNATE MATERIALS AVAILABLE


JUNIPER HATCHES
HATCH, RAISED, WTQA

TO GET A QUICK PRICE QUOTATION
USE THE FORM BELOW OR CLICK HERE FOR A GENERIC FORM

SIZE &
NAVSEA STD
TEST PRESSURE
QUANTITY
HATCH MATERIAL       STEEL
    STAINLESS STEEL
    STAINLESS STEEL (MINESWEEPER REQUIREMENTS)
    ALUMINUM
    ALUMINUM (MINESWEEPER REQUIREMENTS)
    GRP
    OTHER (SPECIAL INSTRUCTIONS BELOW)
HINGE PLACEMENT       SHORT SIDE
    LONG SIDE
COAMING HEIGHT
GASKET MATERIAL       MIL-R-900 NEOPRENE (BLACK)
    AA-59588 CL 3B GR 30 SILICONE (ORANGE)
    OTHER (SPECIAL INSTRUCTIONS BELOW)
FINISH       INORGANIC ZINC &
          FORMULA 150 PRIMER (INTERIOR USE)
    FLAME SPRAYED ALUMINUM &
          FORMULA 150 PRIMER (EXTERIOR USE)
    FORMULA 150 PRIMER ONLY
    NO FINISH
    OTHER (SPECIAL INSTRUCTIONS BELOW)
HASP AND STAPLE

SPECIAL INSTRUCTIONS




YOUR CONTACT INFORMATION

FIRST NAME
LAST NAME
TITLE
ORGANIZATION
ADDRESS
CITY  (OR "FPO")
STATE
POST CODE
COUNTRY
PHONE
FAX
EMAIL ADDRESS
