DOG BOLT ASSEMBLY
JE571-DB

GENERAL NOTES:

USED ON RAISED, INDIVIDUALLY DOGGED HATCH
DOG BOLT, DOG LUG, DOG PAD PIN
AND DOG COLLAR ARE STAINLESS STEEL
DOG COLLAR PIN, DOG PAD RETAINING PIN
AND DOG NUT ARE BRASS
ALTERNATE MATERIALS AVAILABLE

JUNIPER HATCHES
DOG BOLT ASSEMBLY AND PARTS

TO GET A QUICK PRICE QUOTATION
USE THE FORM BELOW OR CLICK HERE FOR A GENERIC FORM

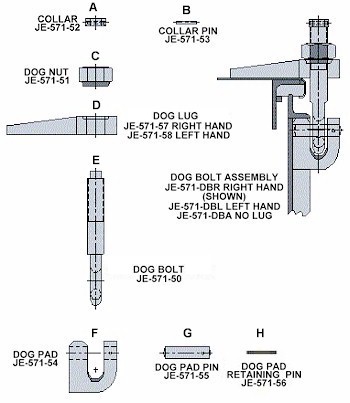

KEY	ITEM	JUNIPER PART NUMBER
COMPLETE RIGHT HAND DOG BOLT ASSEMBLY		JE571-DBR
COMPLETE LEFT HAND DOG BOLT ASSEMBLY		JE571-DBL
COMPLETE DOG BOLT ASSEMBLY NO LUG		JE571-DBAwww.arepwatches.com
INDIVIDUAL COMPONENTS (1 EACH PER KIT)
A	DOG BOLT COLLAR	JE571-52
B	DOG BOLT COLLAR PIN	JE571-53
C	DOG NUT	JE571-51
D	DOG LUG RIGHT HAND	JE571-57
D	DOG LUG LEFT HAND	JE571-58
E	DOG BOLT	JE571-50
F	DOG BOLT PAD	JE571-54
G	DOG PAD PIN	JE571-55
H	DOG PAD RETAINING PIN	JE571-56replica watches

SPECIAL INSTRUCTIONS
