HINGE ASSEMBLY
FOR RAISED HATCH
JEKTHR-203 AND JEKTHR-204

GENERAL NOTES:
  1. USED ON RAISED INDIVIDUALLY DOGGED AND QA HATCHES
  2. HINGE PAD AND HINGE BLADE FOR 803 SERIES ARE STAINLESS
  3. HINGE PAD AND HINGE BLADE FOR 805 SERIES ARE STEEL
  4. HINGE PIN, HINGE COTTER PIN AND HINGE PIN WASHER ARE BRASS
  5. ALTERNATE MATERIALS AVAILABLE


JUNIPER HATCHES
HATCH HINGE ASSEMBLY
FOR RAISED ID AND QA HATCHES Rolex Replica Watches

TO GET A QUICK PRICE QUOTATION
USE THE FORM BELOW OR CLICK HERE FOR A GENERIC FORM

KEY ITEM JUNIPER
PART NUMBER 		QUANTITY IN
SELECTED ASSEMBLY 		QUANTITY
COMPLETE HINGE ASSEMBLY FOR 803 SERIES RAISED HATCH
CLICK TO SEE PARTS IN THIS ASSEMBLY 		JEKTHR-203
COMPLETE HINGE ASSEMBLY FOR 805 SERIES RAISED HATCH
CLICK TO SEE PARTS IN THIS ASSEMBLY 		JEKTHR-204

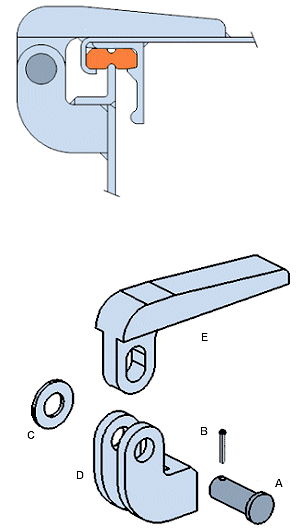

INDIVIDUAL COMPONENTS
A HINGE PIN JE4071-62
B HINGE COTTER PIN JE4071-64
C HINGE PIN WASHER JE4071-63
D HINGE PAD 803 SERIES JE4120-60S6
D HINGE PAD 805 SERIES JE4120-60
E HINGE BLADE 803 SERIES JE4120-59
E HINGE BLADE 805 SERIES JE5120-59
