HATCH DOG ASSEMBLY
INDIVIDUALLY DOGGED FLUSH HATCH
JE105-DA

Hatch Dog Assembly

GENERAL NOTES:

USED ON FLUSH, INDIVIDUALLY DOGGED HATCH
DOG, DOG SLEEVE AND NUT ARE STEEL
DOG SPINDLE IS STAINLESS STEEL
BEARING, BUSHINGS AND SPACERS ARE OLITE BRONZE
PACKING PLUNGER IS BRONZE
ALTERNATE MATERIALS AVAILABLE

JUNIPER HATCHES

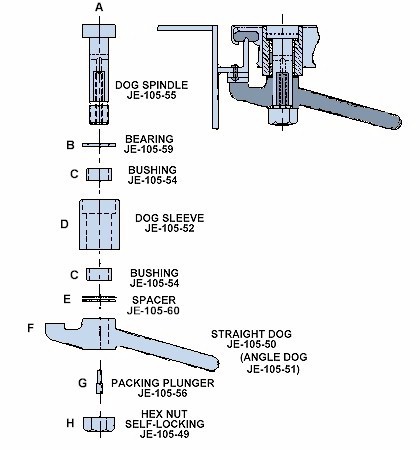

HATCH DOG ASSEMBLY AND COMPONENTS
INDIVIDUALLY DOGGED FLUSH HATCH

TO GET A QUICK PRICE QUOTATION
USE THE FORM BELOW OR CLICK HERE FOR A GENERIC FORM

KEY	ITEM	JUNIPER PART NUMBER	QUANTITY IN KIT
COMPLETE FLUSH HATCH DOG ASSEMBLY, STRAIGHT		JE105-DAS	NA
COMPLETE FLUSH HATCH DOG ASSEMBLY, ANGLE		JE105-DAA	NA
INDIVIDUAL COMPONENTS
A	DOG SPINDLE	JE105-55	1
B	DOG BEARING	JE105-59	1
C	DOG BUSHING	JE105-54	2
D	DOG SLEEVE	JE105-52	1
E	DOG SPACER	JE105-60	2
F	STRAIGHT DOG	JE105-50	1
F	ANGLE DOG	JE105-51	1
G	PACKING PLUNGER	JE105-56	1
H	HEX NUT	JE105-49	1
