JUNIPER HATCHES


Our automated information request service is temporarily unavailable.  Please contact us by fax or phone while we work to improve this website.  Sorry for the inconvenience.

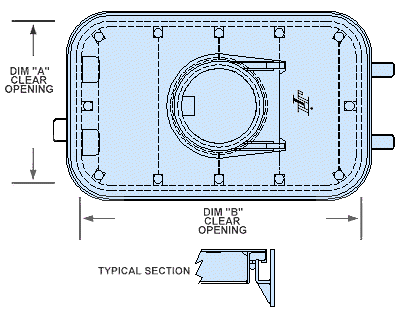

HATCH, FLUSH, WT WITH OPTIONAL SCUTTLE
JE6873-HFS
Hatch, Flush, WT
Hatch Hinge AssemblyHatch Dog Assembly
GENERAL NOTES:
  1. DIM "A" AND "B" TO BE SPECIFIED
  2. HINGED:  SHORT SIDE STANDARD
  3. PANEL:  STEEL
  4. HARDWARE:  VARIOUS
  5. SPECIFY NUMBER OF DOGS OR TEST PRESSURE
  6. OPTIONAL SCUTTLE DIAMETER TO BE SPECIFIED
  7. SCUTTLE TEST PRESSURE IS EQUAL TO OR GREATER THAN HATCH TEST PRESSURE
  8. STANDARD FINISH:  INORGANIC ZINC
    AND FORMULA 150 PRIMER
  9. FLAME SPRAYED ALUMINUM COATING
    I.A.W. DOD-STD-2138
    AVAILABLE FOR EXTERIOR INSTALLATION
  10. ALTERNATE MATERIALS AVAILABLE


JUNIPER HATCHES
HATCH, FLUSH, WT WITH OPTIONAL SCUTTLE

TO GET A QUICK PRICE QUOTATION
USE THE FORM BELOW OR CLICK HERE FOR A GENERIC FORM

SIZE &
NAVSEA STD
TEST PRESSURE
QUANTITY
HATCH MATERIAL       STEEL
    STAINLESS STEEL
    STAINLESS STEEL (MINESWEEPER REQUIREMENTS)
    ALUMINUM
    ALUMINUM (MINESWEEPER REQUIREMENTS)
    GRP
    OTHER (SPECIAL INSTRUCTIONS BELOW)
HINGE PLACEMENT       SHORT SIDE
    LONG SIDE
GASKET MATERIAL       MIL-R-900 NEOPRENE (BLACK)
    AA-59588 CL 3B GR 30 SILICONE (ORANGE)
    OTHER (SPECIAL INSTRUCTIONS BELOW)
SCUTTLE SIZE
SCUTTLE HINGE
ORIENTATION   		    SAME AS HATCH HINGE
    OTHER (SPECIAL INSTRUCTIONS BELOW)
FINISH       INORGANIC ZINC &
          FORMULA 150 PRIMER (INTERIOR USE)
    FLAME SPRAYED ALUMINUM &
          FORMULA 150 PRIMER (EXTERIOR USE)
    FORMULA 150 PRIMER ONLY
    NO FINISH
    OTHER (SPECIAL INSTRUCTIONS BELOW)
HASP AND STAPLE

SPECIAL INSTRUCTIONS




YOUR CONTACT INFORMATION

FIRST NAME
LAST NAME
TITLE
ORGANIZATION
ADDRESS
CITY  (OR "FPO")
STATE
POST CODE
COUNTRY
PHONE
FAX
EMAIL ADDRESS
