HINGE ASSEMBLY
FOR FLUSH HATCH
JEKTHF-201


GENERAL NOTES:
  1. USED ON FLUSH, INDIVIDUALLY DOGGED HATCH
  2. SAME HINGE USED FOR BOTH 803 AND 805 SERIES HATCHES
  3. ALL PARTS ARE STEEL EXCEPT HINGE PIN AND SCREWS, WHICH ARE STAINLESS STEEL
  4. ALTERNATE MATERIALS AVAILABLE


JUNIPER HATCHES
HATCH HINGE ASSEMBLY
FOR FLUSH ID HATCH

TO GET A QUICK PRICE QUOTATION
USE THE FORM BELOW OR CLICK HERE FOR A GENERIC FORM

KEY ITEM JUNIPER
PART NUMBER 		QUANTITY
COMPLETE HINGE ASSEMBLY FOR FLUSH HATCH JEKTHF-201

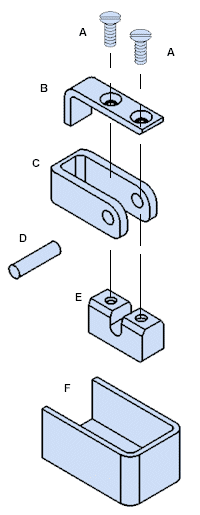

INDIVIDUAL COMPONENTS
(ASSEMBLY INCLUDES 2 SCREWS AND 1 EACH ALL OTHER PARTS)
A FLATHEAD SCREW
TWO PER HINGE 		JE4106-72S4
B HINGE PIN KEEPER JE4106-71
C HINGE U-PAD JE4106-68
D HINGE PIN JE4106-69S6
E HINGE PIN BLOCK JE4106-70
F HINGE POCKET JE4106-73AY

SPECIAL INSTRUCTIONS
