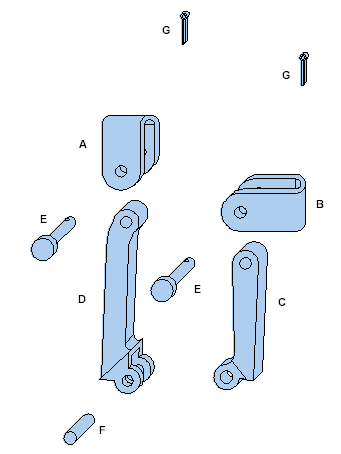

BRACE LINK ASSEMBLY
FOR 805 SERIES
QA SPRING BALANCED OVAL HATCH

GENERAL NOTES:
  1. USED ON RAISED, QA SPRING BALANCED OVAL HATCHES
  2. BRACE LINKS ARE STEEL
  3. BRACE LINK LUGS ARE STEEL
  4. BRACE PINS ARE BRASS
  5. ALTERNATE MATERIALS AVAILABLE


JUNIPER HATCHES
BRACE LINK ASSEMBLY
FOR OVAL QA SPRING BALANCED HATCH JE-6021

TO GET A QUICK PRICE QUOTATION
USE THE FORM BELOW OR CLICK HERE FOR A GENERIC FORM

PARTS KITS
COMPLETE BRACE LINK ASSEMBLY FOR OVAL QA SPRING BALANCED HATCH JEKTHR-302
WEAR PARTS KIT FOR OVALQA SPRING BALANCED HATCH JEKTHR-607
INDIVIDUAL COMPONENTS
KEY ITEM JUNIPER
PART NUMBER 		QUANTITY IN
COMPLETE ASSEMBLY 		QUANTITY IN
WEAR PARTS KIT 		QUANTITY
A TOP LUG JE6022-46 1 0
B BOTTOM LUG JE6022-47 1 0
C BRACE MALE JE6022-51 1 1
D BRACE FEMALE JE6022-52 1 1
E FLAT HEAD BRACE PIN JE5098-44 2 2
F BRACE PIN JE6021-50 1 1
G COTTER PIN JE5097-45 2 2

SPECIAL INSTRUCTIONS
