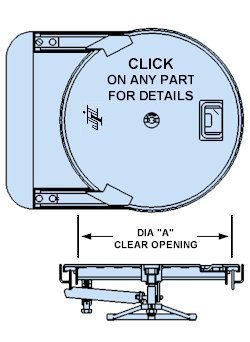

SCUTTLE, FLUSH, WTQA, 4 DOG
JE7455-SF
Scuttle, Flush, WTQA, 4 Dog

GENERAL NOTES:
  1. STANDARD DIA "A":  25"
  2. PANEL:  STEEL
  3. PRESSURE REQUIREMENTS TO BE SPECIFIED
  4. HARDWARE:  VARIOUS
  5. STANDARD BEARINGS:  SELF-LUBRICATING STAINLESS STEEL
  6. DRAINS OPTIONAL
  7. STANDARD FINISH:  INORGANIC ZINC AND FORMULA 150 PRIMER
  8. FLAME SPRAYED ALUMINUM COATING
    I.A.W. DOD-STD-2138
    AVAILABLE FOR EXTERIOR INSTALLATION
  9. ALTERNATE MATERIALS AVAILABLE

JUNIPER SCUTTLES
SCUTTLE, FLUSH, WTQA, 4 DOG

TO GET A QUICK PRICE QUOTATION
USE THE FORM BELOW OR CLICK HERE FOR A GENERIC FORM

SIZE &
NAVSEA STD
TEST PRESSURE
QUANTITY
SCUTTLE MATERIAL       STEEL
    STAINLESS STEEL
    STAINLESS STEEL (MINESWEEPER REQUIREMENTS)
    ALUMINUM
    ALUMINUM (MINESWEEPER REQUIREMENTS)
    GRP
    OTHER (SPECIAL INSTRUCTIONS BELOW)
BEARINGS       SELF-LUBRICATING STAINLESS STEEL
    OTHER (SPECIAL INSTRUCTIONS BELOW)
GASKET MATERIAL       MIL-R-900 NEOPRENE (BLACK)
    AA-59588 CL 3B GR 30 SILICONE (ORANGE)
    OTHER (SPECIAL INSTRUCTIONS BELOW)
FINISH       INORGANIC ZINC &
          FORMULA 150 PRIMER (INTERIOR USE)
    FLAME SPRAYED ALUMINUM &
          FORMULA 150 PRIMER (EXTERIOR USE)
    FORMULA 150 PRIMER ONLY
    NO FINISH
    OTHER (SPECIAL INSTRUCTIONS BELOW)
OPTIONAL DRAINS       NO
    YES
HASP AND STAPLE

SPECIAL INSTRUCTIONS




YOUR CONTACT INFORMATION

FIRST NAME
LAST NAME
TITLE
ORGANIZATION
ADDRESS
CITY  (OR "FPO")
STATE
POST CODE
COUNTRY
PHONE
FAX
EMAIL ADDRESS
