Juniper Industries, Inc.

JUNIPER SCUTTLES


Our automated information request service is temporarily unavailable.  Please contact us by fax or phone while we work to improve this website.  Sorry for the inconvenience.

Dogging Parts Dogging Parts Hinge Parts SCUTTLE, LOW PROFILE, WTQA
RAMPED
6000 LB. WHEEL LOAD
JE7144-SLP

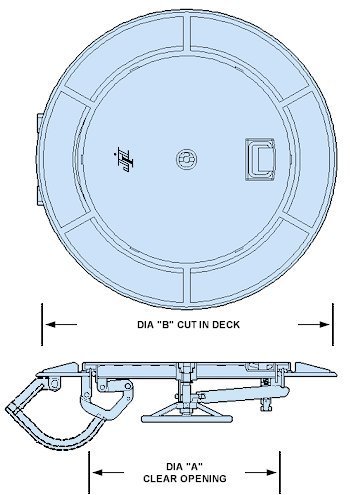

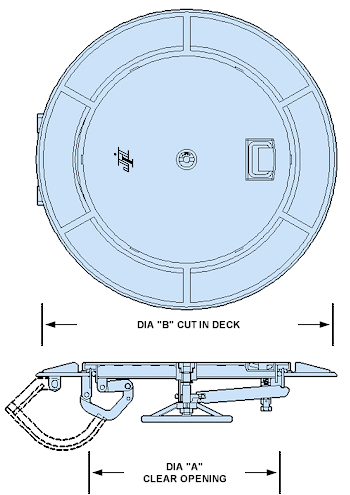

Scuttle, Low Profile, WTQA

GENERAL NOTES:
  1. STANDARD DIA "A" IS 21"
  2. STANDARD DIA "B" IS 33"
  3. PANEL AND RAMP:  STEEL
  4. HARDWARE:  VARIOUS
  5. STANDARD FINISH:  FLAME SPRAYED ALUMINUM
    I.A.W. DOD-STD-2138
    AND FORMULA 150 PRIMER
  6. ALTERNATE SIZES AND MATERIALS AVAILABLE

JUNIPER SCUTTLES
JUNIPER SCUTTLE, LOW PROFILE, WTQA

TO GET A QUICK PRICE QUOTATION
USE THE FORM BELOW OR CLICK HERE FOR A GENERIC FORM

SIZE &
NAVSEA STD
TEST PRESSURE
QUANTITY
SCUTTLE MATERIAL       STEEL
    STAINLESS STEEL
    STAINLESS STEEL (MINESWEEPER REQUIREMENTS)
    ALUMINUM
    ALUMINUM (MINESWEEPER REQUIREMENTS)
    GRP
    OTHER (SPECIAL INSTRUCTIONS BELOW)
BEARINGS       SELF-LUBRICATING STAINLESS STEEL
    OTHER (SPECIAL INSTRUCTIONS BELOW)
GASKET MATERIAL       MIL-R-900 NEOPRENE (BLACK)
    AA-59588 CL 3B GR 30 SILICONE (ORANGE)
    OTHER (SPECIAL INSTRUCTIONS BELOW)
FINISH       INORGANIC ZINC &
          FORMULA 150 PRIMER (INTERIOR USE)
    FLAME SPRAYED ALUMINUM &
          FORMULA 150 PRIMER (EXTERIOR USE)
    FORMULA 150 PRIMER ONLY
    NO FINISH
    OTHER (SPECIAL INSTRUCTIONS BELOW)
HASP AND STAPLE

SPECIAL INSTRUCTIONS




YOUR CONTACT INFORMATION

FIRST NAME
LAST NAME
TITLE
ORGANIZATION
ADDRESS
CITY  (OR "FPO")
STATE
POST CODE
COUNTRY
PHONE
FAX
EMAIL ADDRESS



SCUTTLE, RAISED, WTQA, 3 DOG
SCUTTLE, RAISED, WTQA, 4 DOG
SCUTTLE, FLUSH, WTQA, 3 DOG
SCUTTLE, FLUSH, WTQA, 4 DOG
SCUTTLE, FLUSH, HIGH WHEEL LOAD
SCUTTLE, RAISED, WT
DOGGING MECHANISM PARTS
HINGE AND BRACE LINK PARTS
OPTIONAL PARTS
