Juniper Industries, Inc.

JUNIPER SCUTTLES

Scuttle hinge parts Scuttle hinge parts Scuttle dogging mechanism parts Scuttle dogging mechanism parts

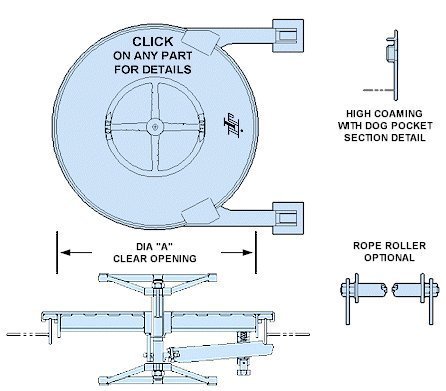

SCUTTLE, RAISED, WTQA, 3 DOG
JE7943-SR
Scuttle, raised, WTQA, 3 dog

MOUSE OVER THE HINGES OR DOGGING MECHANISM
TO REACH PARTS PAGES


GENERAL NOTES:
  1. PANEL:  STEEL
  2. COAMING:  STAINLESS STEEL
  3. STANDARD LOW COAMING 2"
  4. STANDARD HIGH COAMING 6"
  5. PRESSURE REQUIREMENTS TO BE SPECIFIED
  6. HARDWARE:  VARIOUS
  7. STANDARD BEARINGS:  SELF-LUBRICATING STAINLESS STEEL
  8. STANDARD FINISH:  INORGANIC ZINC AND FORMULA 150 PRIMER
  9. FLAME SPRAYED ALUMINUM COATING
    I.A.W. DOD-STD-2138
    AVAILABLE FOR EXTERIOR INSTALLATION
  10. ALTERNATE MATERIALS AVAILABLE


JUNIPER PART NUMBER C.O. DIAMETER COAMING HEIGHT
JE7943-SR-18-L 18" 2"
JE7943-SR-18-H 18" 6"
JE7943-SR-21-L 21" 2"
JE7943-SR-21-H 21" 6"


JUNIPER SCUTTLES
SCUTTLE, RAISED, WTQA, 3 DOG

TO GET A QUICK PRICE QUOTATION
USE THE FORM BELOW OR CLICK HERE FOR A GENERIC FORM

SIZE &
NAVSEA STD
TEST PRESSURE
QUANTITY
SCUTTLE MATERIAL       STEEL
    STAINLESS STEEL
    STAINLESS STEEL (MINESWEEPER REQUIREMENTS)
    ALUMINUM
    ALUMINUM (MINESWEEPER REQUIREMENTS)
    GRP
    OTHER (SPECIAL INSTRUCTIONS BELOW)
BEARINGS       SELF-LUBRICATING STAINLESS STEEL
    OTHER (SPECIAL INSTRUCTIONS BELOW)
COAMING HEIGHT
GASKET MATERIAL       MIL-R-900 NEOPRENE (BLACK)
    AA-59588 CL 3B GR 30 SILICONE (ORANGE)
    OTHER (SPECIAL INSTRUCTIONS BELOW)
FINISH       INORGANIC ZINC &
          FORMULA 150 PRIMER (INTERIOR USE)
    FLAME SPRAYED ALUMINUM &
          FORMULA 150 PRIMER (EXTERIOR USE)
    FORMULA 150 PRIMER ONLY
    NO FINISH
    OTHER (SPECIAL INSTRUCTIONS BELOW)
HASP AND STAPLE
ROPE ROLLER       NONE
    PROVIDED
    OTHER (SPECIAL INSTRUCTIONS BELOW)

SPECIAL INSTRUCTIONS




YOUR CONTACT INFORMATION

FIRST NAME
LAST NAME
TITLE
ORGANIZATION
ADDRESS
CITY  (OR "FPO")
STATE
POST CODE
COUNTRY
PHONE
FAX
EMAIL ADDRESS



RAISED SCUTTLE DOGGING MECHANISM PARTS
RAISED SCUTTLE HINGE AND BRACE LINK PARTS
SCUTTLE, RAISED, WTQA, 4 DOG
SCUTTLE, FLUSH, WTQA, 3 DOG
SCUTTLE, FLUSH, WTQA, 4 DOG
SCUTTLE, LOW PROFILE, RAMPED, WTQA
SCUTTLE, FLUSH, HIGH WHEEL LOAD
SCUTTLE, RAISED, WT
OPTIONAL PARTS
SCUTTLE INDEX
HOW TO KEEP WATERTIGHT CLOSURES SHIP SHAPE
