JUNIPER HINGE AND BRACE LINK PARTS
FOR RAISED SCUTTLES


Hinge Parts

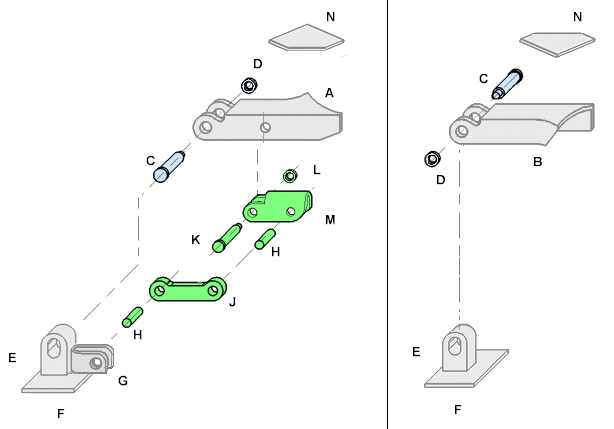

LH HINGE WITH BRACE LINK (LEFT)
AND RH HINGE WITHOUT BRACE LINK (RIGHT)
FOR TYPICAL RAISED SCUTTLE




GENERAL NOTES:
  1. BRACE LINK WEAR PARTS SHOWN IN GREEN
  2. HINGE WEAR PARTS SHOWN IN BLUE
  3. YOU MAY ORDER COMMONLY REQUESTED KITS OF PARTS UNDER A SINGLE PART NUMBER. TO REPLACE ALL WEAR PARTS USED IN SCUTTLE HINGES, ORDER ONE EACH LEFT HINGE WEAR PARTS KIT, RIGHT HINGE WEAR PARTS KIT, AND BRACE LINK KIT.
  4. HINGE PADS, BRACE LINK PADS, AND REINFORCEMENTS ARE AVAILABLE INDIVIDUALLY OR AS COMPLETE WELDMENTS. ALL CHOICES ARE LISTED BELOW




HINGE AND BRACE LINK PARTS
FOR QA RAISED SCUTTLES

COMPLETE HINGES INCLUDE ALL PARTS ILLUSTRATED
WEAR PARTS IN BLUE ARE AVAILABLE INDIVIDUALLY
OR AS KITS AS DESCRIBED BELOW
OTHER PARTS IN GRAY ARE AVAILABLE INDIVIDUALLY ONLY

CLICK HERE FOR A GENERIC ORDER FORM

HINGE AND BRACE QUICK PARTS SELECTOR
CLICK BELOW DESCRIPTION OF KIT TO DISPLAY THE PARTS IN THAT KIT.
PARTS KITS
  COMPLETE SCUTTLE HINGE REPLACEMENT KIT FOR 18" SCUTTLE WITH LOW COAMING
(ALL PARTS ILLUSTRATED FOR BOTH HINGES)
CLICK TO SEE PARTS IN THIS KIT 		JEKTSR-201
  COMPLETE SCUTTLE HINGE REPLACEMENT KIT FOR 18" SCUTTLE WITH HIGH COAMING
(ALL PARTS ILLUSTRATED FOR BOTH HINGES)
CLICK TO SEE PARTS IN THIS KIT 		JEKTSR-206
  COMPLETE SCUTTLE HINGE REPLACEMENT KIT FOR 21" SCUTTLE WITH LOW COAMING
(ALL PARTS ILLUSTRATED FOR BOTH HINGES)
CLICK TO SEE PARTS IN THIS KIT 		JEKTSR-202
  COMPLETE SCUTTLE HINGE REPLACEMENT KIT FOR 21" SCUTTLE WITH HIGH COAMING
(ALL PARTS ILLUSTRATED FOR BOTH HINGES)
CLICK TO SEE PARTS IN THIS KIT 		JEKTSR-207
  COMPLETE SCUTTLE HINGE REPLACEMENT KIT FOR 25" SCUTTLE WITH LOW COAMING
(ALL PARTS ILLUSTRATED FOR BOTH HINGES)
CLICK TO SEE PARTS IN THIS KIT 		JEKTSR-204
  COMPLETE SCUTTLE HINGE REPLACEMENT KIT FOR 25" SCUTTLE WITH HIGH COAMING
(ALL PARTS ILLUSTRATED FOR BOTH HINGES)
CLICK TO SEE PARTS IN THIS KIT 		JEKTSR-209
WEAR PARTS KITS
  LEFT HINGE WEAR PARTS KIT
(ALL BLUE AND GREEN PARTS IN LEFT HINGE)
CLICK TO SEE PARTS IN THIS KIT 		JEKTSR-601
  RIGHT HINGE WEAR PARTS KIT
(ALL BLUE PARTS IN RIGHT HINGE)
CLICK TO SEE PARTS IN THIS KIT 		JEKTSR-602
  COMPLETE BRACE LINK WEAR PARTS KIT
(ALL GREEN PARTS)
CLICK TO SEE PARTS IN THIS KIT 		JEKTSR-605
INDIVIDUAL PARTS
KEY ITEM JUNIPER
PART NUMBER 		SELECTED QUANTITY
REQUIRED
A HINGE BLADE, LH, 18" SCUTTLES JE3943-34
A HINGE BLADE, LH, 21" SCUTTLES JE3943-36
A HINGE BLADE, LH, 25" SCUTTLES JE3943-10
B HINGE BLADE, RH, 18" SCUTTLES JE3943-35
B HINGE BLADE, RH, 21" SCUTTLES JE3943-37
B HINGE BLADE, RH, 25" SCUTTLES JE3943-11
C HINGE PIN JE3943-15
D HINGE PIN COLLAR JE3943-16
E HINGE PAD, LOW COAMING JE3943-17
E HINGE PAD, HIGH COAMING JE3943-25
F 2-1/2" SQUARE HINGE PAD REINFORCEMENT JE5943-27
G BRACE PAD, LOW COAMING JE3943-21
G BRACE PAD, HIGH COAMING JE3943-24
E F G LEFT SIDE HINGE AND BRACE PAD WELDMENT, LOW COAMING JE5943-17L-AY
E F G LEFT SIDE HINGE AND BRACE PAD WELDMENT, HIGH COAMING JE5943-24L-AY
E F RIGHT SIDE HINGE PAD WELDMENT, LOW COAMING JE5943-17R-AY
H BRACE PIN JE3943-22
J BRACE LINK JE3943-23
K BRACE PIN JE3943-20
L BRACE PIN COLLAR JE3943-18
M BRACE LINK JE3943-19
