JUNIPER SCUTTLE DOGGING PARTS
FOR RAISED SCUTTLES


Raised scuttle dogging parts

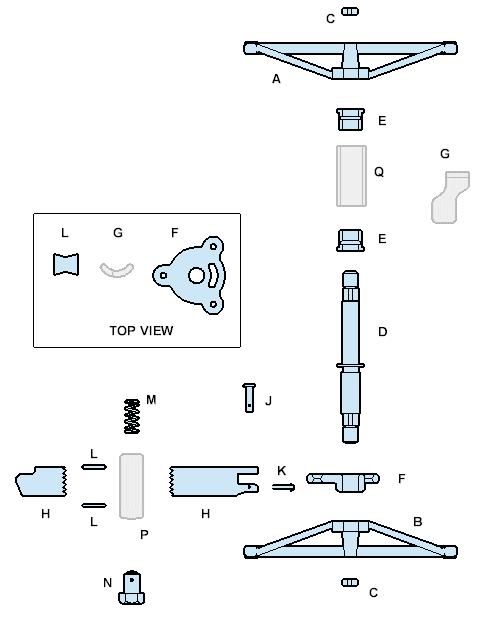

SCUTTLE DOGGING MECHANISM
FOR TYPICAL RAISED SCUTTLE

GENERAL NOTES:
  1. DOGGING MECHANISM PARTS LISTED BELOW ARE USED WITH BOTH LOW COAMING AND HIGH COAMING SCUTTLES
  2. WHETHER YOU NEED SOME OR ALL OF THE REPLACEMENT PARTS FOR A PARTICULAR SCUTTLE, OUR QUICK PARTS SELECTOR MAY BE THE BEST WAY TO DETERMINE THE NUMBER OF PARTS YOU SHOULD ORDER




DOGGING MECHANISMS PARTS
FOR QA RAISED SCUTTLES

COMPLETE MECHANISMS INCLUDE ALL PARTS ILLUSTRATED
WEAR PARTS IN BLUE ARE AVAILABLE INDIVIDUALLY
OR AS KITS AS DESCRIBED BELOW

CLICK HERE FOR A GENERIC ORDER FORM

DOGGING MECHANISM QUICK PARTS SELECTOR

CLICK BELOW LISTING OF ANY TYPE OF SCUTTLE
TO DISPLAY THE LIST OF PARTS OR WEAR PARTS FOR THAT MODEL.
DOGGING MECHANISM PARTS ARE THE SAME FOR LOW AND HIGH COAMING SCUTTLES.
COMPLETE DOGGING ASSEMBLIES
(ALL PARTS SHOWN)
  DOGGING ASSEMBLY 18" 3-DOG RAISED SCUTTLE
CLICK TO SEE PARTS IN THIS ASSEMBLY 		JEKTSR-101
  DOGGING ASSEMBLY 21" 3-DOG RAISED SCUTTLE
CLICK TO SEE PARTS IN THIS ASSEMBLY 		JEKTSR-102
  DOGGING ASSEMBLY 21" 4-DOG RAISED SCUTTLE
CLICK TO SEE PARTS IN THIS ASSEMBLY 		JEKTSR-103
  DOGGING ASSEMBLY 25" 4-DOG RAISED SCUTTLE
CLICK TO SEE PARTS IN THIS ASSEMBLY 		JEKTSR-104
WEAR PARTS KITS
(ALL PARTS IN BLUE)
  WEAR PARTS KIT 18" 3-DOG RAISED SCUTTLE
CLICK TO SEE PARTS IN THIS KIT 		JEKTSR-501
  WEAR PARTS KIT 21" 3-DOG RAISED SCUTTLE
CLICK TO SEE PARTS IN THIS KIT 		JEKTSR-502
  WEAR PARTS KIT 21" 4-DOG RAISED SCUTTLE
CLICK TO SEE PARTS IN THIS KIT 		JEKTST-503
  WEAR PARTS KIT 25" 4-DOG RAISED SCUTTLE
CLICK TO SEE PARTS IN THIS KIT 		JEKTSR-504
KEY ITEM JUNIPER
PART NUMBER 		SELECTOR
RESULTS 		QUANTITY
REQUIRED
DOGGING MECHANISM PARTS
A HANDWHEEL, UPPER, BRASS, 10 IN JE3943-66
A HANDWHEEL, UPPER, BRASS, 13 IN JE3943-47
B HANDWHEEL, LOWER, BRASS, 10 IN JE3943-67
B HANDWHEEL, LOWER, BRASS, 13 IN JE3943-48
C HANDWHEEL LOCK NUT JE1891-25
D SPINDLE JE3943-14
E FLANGED BEARING
 JE3943-56
F SPIDER FOR 3-DOG SCUTTLE JE3943-68
F SPIDER FOR 4-DOG SCUTTLE
 		JE3943-55
G DOG CAM JE3943-60
H DOG (18" SCUTTLE)
 		JE3943-53
H DOG (21" SCUTTLE)
 		JE3943-54
H DOG (25" SCUTTLE)
 		JE3943-42
J CLEVIS PIN JE3943-46
K CLEVIS PIN COTTER PIN JE1891-22
L DOG REST SLIDE PLATE
TWO USED PER DOG REST
 JE3943-63
M DOG REST SPRING JE3943-49
N DOG ADJUSTING SCREW JE3943-57
P DOG REST JE3943-58
Q SPINDLE SLEEVE JE3943-45
