JUNIPER SCUTTLE DOGGING PARTS
FOR FLUSH SCUTTLES

Flush scuttle dog parts

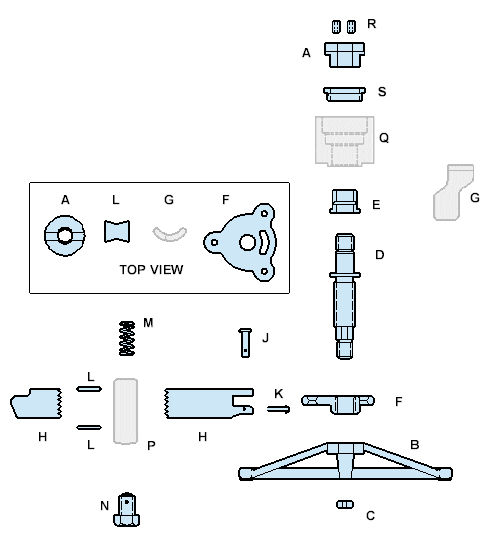

SCUTTLE DOGGING MECHANISM
FOR TYPICAL FLUSH SCUTTLE

GENERAL NOTES:
  1. DOGGING MECHANISM PARTS LISTED BELOW INCLUDE ITEMS USED WITH ALL FLUSH SCUTTLES
  2. WHETHER YOU NEED SOME OR ALL OF THE REPLACEMENT PARTS FOR A PARTICULAR SCUTTLE, OUR QUICK PARTS SELECTOR MAY BE THE BEST WAY TO DETERMINE THE NUMBER OF PARTS YOU SHOULD ORDER




DOGGING MECHANISM PARTS
FOR QA FLUSH SCUTTLES

COMPLETE MECHANISMS INCLUDE ALL PARTS ILLUSTRATED
WEAR PARTS IN BLUE ARE AVAILABLE INDIVIDUALLY
OR AS KITS AS DESCRIBED BELOW

CLICK HERE FOR A GENERIC ORDER FORM

DOGGING MECHANISM QUICK PARTS SELECTOR

CLICK IN LISTING OF ANY SCUTTLE OR WEAR PARTS KIT
TO DISPLAY THE LIST OF PARTS.
THE SCREEN WILL DISPLAY ONE ARROW FOR EACH UNIT OF EACH REQUIRED PART.
JUST SCROLL DOWN TO SEE THE RESULTS.
COMPLETE DOGGING ASSEMBLIES
(ALL PARTS SHOWN)
  DOGGING ASSEMBLY 18" FLUSH SCUTTLE
CLICK TO SEE PARTS IN THIS ASSEMBLY 		JEKTSF-101
  DOGGING ASSEMBLY 21" FLUSH SCUTTLE
CLICK TO SEE PARTS IN THIS ASSEMBLY 		JEKTSF-102
  DOGGING ASSEMBLY 25" FLUSH SCUTTLE
CLICK TO SEE PARTS IN THIS ASSEMBLY 		JEKTSF-104
WEAR PARTS KITS
(ALL PARTS IN BLUE)
  WEAR PARTS KIT 18" FLUSH SCUTTLE
CLICK TO SEE PARTS IN THIS KIT 		JEKTSF-501
  WEAR PARTS KIT 21" FLUSH SCUTTLE
CLICK TO SEE PARTS IN THIS KIT 		JEKTSF-502
  WEAR PARTS KIT 25" FLUSH SCUTTLE
CLICK TO SEE PARTS IN THIS KIT 		JEKTSF-504
DOGGING MECHANISM PARTS
KEY ITEM JUNIPER
PART NUMBER 		SELECTOR
RESULTS 		QUANTITY
REQUIRED
B HANDWHEEL, LOWER, BRASS, 10 IN JE3055-18
B HANDWHEEL, LOWER, BRASS, 13 IN JE3055-19
C HANDWHEEL LOCK NUT JE3056-23
A SPINDLE COLLAR JE3055-2
R SPINDLE COLLAR SETSCREW JE3056-21
D SPINDLE JE3055-1
S FLANGED BEARING, UPPER
 JE3055-16
E FLANGED BEARING, LOWER
 JE3055-17
F SPIDER FOR 3-DOG SCUTTLE JE3055-8
F SPIDER FOR 4-DOG SCUTTLE
 		JE3055-47
G DOG CAM JE3055-10
H DOG (18" SCUTTLE)
 		JE3055-9
H DOG (21" SCUTTLE)
 		JE3055-41
H DOG (25" SCUTTLE)
 		JE3055-48
J CLEVIS PIN JE3055-14
K COTTER PIN JE3056-30
L DOG REST SLIDE PLATE
TWO USED PER DOG REST
 JE3055-13
M DOG REST SPRING JE3055-12
N DOG ADJUSTING SCREW JE3055-15
P DOG REST JE3055-11
Q SPINDLE SLEEVE JE3055-3
