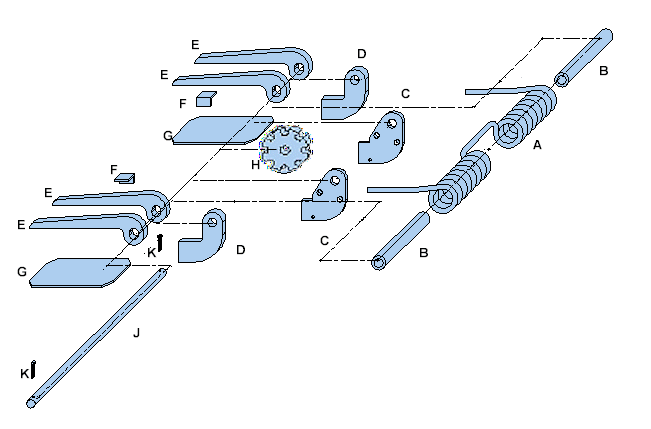

SINGLE SPRING HINGE
FOR QA SPRING BALANCED CORNER DOGGED HATCH
USED ON 805 HATCH TYPE JE5097 ASSY 1 RECTANGULAR HATCH
AND JE6021 OVAL HATCH

GENERAL NOTES:
  1. USED ON RAISED, QA SPRING BALANCED 805 HATCHES
  2. SAME HINGES ARE USED ON 24 X 30 RECTANGULAR AND OVAL HATCHES


JUNIPER HATCHES
SINGLE SPRING HINGE
FOR CORNER DOGGED QA SPRING BALANCED HATCH

TO GET A QUICK PRICE QUOTATION
USE THE FORM BELOW OR CLICK HERE FOR A GENERIC FORM

PARTS KITS
COMPLETE SINGLE SPRING HINGE ASSEMBLY PARTS KIT FOR 805 SERIES 24 X 30 SPRING BALANCED HATCHES JEKTHR-213
COMPLETE SINGLE SPRING HINGE ASSEMBLY WEAR KIT FOR 805 SERIES 24 X 30 SPRING BALANCED HATCHES JEKTHR-603
INDIVIDUAL COMPONENTS
KEY ITEM JUNIPER
PART NUMBER 		QUANTITY IN
COMPLETE ASSEMBLY 		QUANTITY IN
WEAR PARTS KIT 		QUANTITY
A SPRING JE5097-54 1 1
B SPRING GUIDE JE6021-60 2 2
C SPRING KEY PAD JE5098-51 2 0
D HINGE PAD JE6022-32 2 0
E HINGE BLADE JE6022-31 4 0
F SPRING KEEPER JE6021-59 2 0
G HINGE STIFFENER JE5098-35 2 0
H SPRING KEY JE5097-50 1 1
J HINGE PIN JE6022-33 1 1
K COTTER PIN JE097-34 2 2
