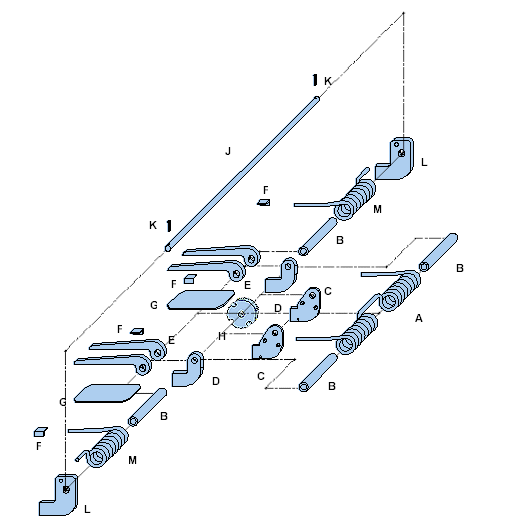

DOUBLE SPRING HINGE
FOR 803 SERIES QA SPRING BALANCED HATCH
USED ON HATCH TYPE JE1926

GENERAL NOTES:
  1. USED ON RAISED, QA SPRING BALANCED, CORNER DOGGED HATCHES
  2. DOUBLE SPRING HINGES ARE USED ONLY ON 30 X 30 HATCHES
  3. USE SINGLE SPRING HINGES ON 24 X 24 AND 24 X 30 HATCHES


JUNIPER HATCHES
DOUBLE SPRING HINGE
FOR CORNER DOGGED QA SPRING BALANCED HATCH

TO GET A QUICK PRICE QUOTATION
USE THE FORM BELOW OR CLICK HERE FOR A GENERIC FORM

PARTS KITS
COMPLETE DOUBLE SPRING HINGE ASSEMBLY PARTS KIT FOR 30 X 30 CORNER DOGGED SPRING BALANCED HATCH JEKTHR-212
COMPLETE DOUBLE SPRING HINGE ASSEMBLY WEAR KIT FOR 30 X 30 CORNER DOGGED SPRING BALANCED HATCH JEKTHR-602
INDIVIDUAL COMPONENTS
KEY ITEM JUNIPER
PART NUMBER 		QUANTITY IN
COMPLETE ASSEMBLY 		QUANTITY IN
WEAR PARTS KIT 		QUANTITY
A SPRING JE5098-67 1 1
B SPRING GUIDE JE5098-66 4 4
C SPRING KEY PAD JE5098-51 2 0
D HINGE PAD JE5098-31 2 9
E HINGE BLADE JE6022-31 4 0
F SPRING KEEPER JE5098-55 4 0
G HINGE STIFFENER JE5098-35 2 0
H SPRING KEY JE5098-65 1 1
J HINGE PIN JE1926-27 1 1
K COTTER PIN JE5097-34 2 2
L END HINGE PAD JE1926-58 2 0
M HALF SPRING LEFT JE1926-61 1 1
M HALF SPRING RIGHT JE1926-62 1 1
