JUNIPER HINGE AND BRACE PARTS
FOR JE7145-SLP HIGH WHEEL LOAD FLUSH SCUTTLE

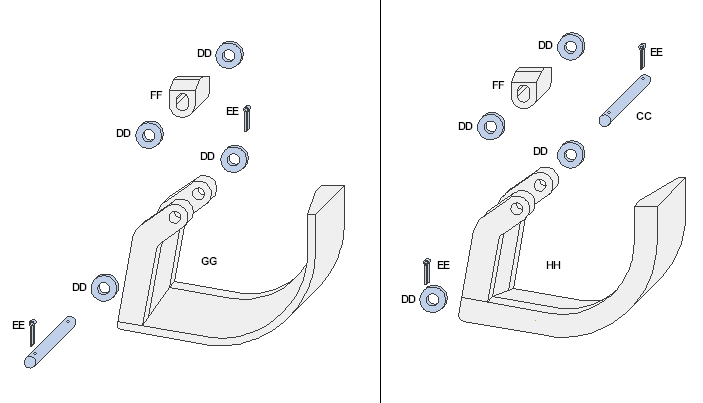

Hinge Parts


LEFT SIDE HINGE (LEFT)
AND RIGHT SIDE HINGE (RIGHT)
FOR HIGH WHEEL LOAD SCUTTLE

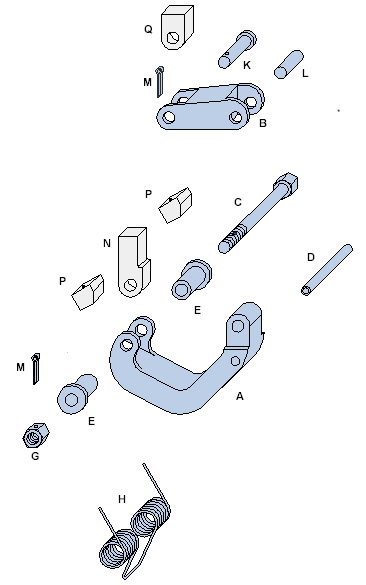

Brace Link Parts


BRACE LINK FOR LEFT OR RIGHT HINGE
FOR HIGH WHEEL LOAD SCUTTLE


GENERAL NOTES:
  1. HINGE AND BRACE WEAR PARTS SHOWN IN BLUE.
  2. OTHER PARTS SHOWN IN GRAY.
  3. YOU MAY ORDER COMMONLY REQUESTED KITS OF PARTS UNDER A SINGLE PART NUMBER.
  4. TO REPLACE ALL WEAR PARTS USED IN THE TWO HINGES ON A FULLY BRACED SCUTTLE, ORDER ONE EACH LEFT HINGE WEAR PARTS KIT AND TWO BRACE LINK KITS.




HINGE AND BRACE LINK PARTS
FOR FOR HIGH WHEEL LOAD SCUTTLES

COMPLETE HINGES INCLUDE ALL PARTS ILLUSTRATED
WEAR PARTS IN BLUE ARE AVAILABLE INDIVIDUALLY
OTHER PARTS IN GRAY ARE NOT WEAR PARTS BUT ARE ALSO AVAILABLE INDIVIDUALLY

CLICK HERE FOR A GENERIC ORDER FORM

HINGE AND BRACE QUICK PARTS SELECTOR

CLICK LISTING OF ANY HINGE, BRACE OR WEAR PARTS KIT
TO DISPLAY THE LIST OF PARTS.
THE SCREEN WILL DISPLAY ONE ARROW FOR EACH UNIT OF EACH REQUIRED PART.
JUST SCROLL DOWN TO SEE THE RESULTS.
PARTS KITS
  SCUTTLE LEFT HINGE REPLACEMENT KIT
CLICK TO SEE PARTS IN THIS KIT 		JEKTSF-206
  SCUTTLE RIGHT HINGE REPLACEMENT KIT
CLICK TO SEE PARTS IN THIS KIT 		JEKTSF-205
  SCUTTLE BRACE LINK REPLACEMENT KIT FOR ONE HINGE
CLICK TO SEE PARTS IN THIS KIT 		JEKTSF-301
WEAR PARTS KITS
  WEAR PARTS KIT FOR ONE HINGE (LEFT OR RIGHT)
CLICK TO SEE PARTS IN THIS KIT 		JEKTSF-608
  BRACE LINK WEAR PARTS KIT FOR ONE HINGE
CLICK TO SEE PARTS IN THIS ASSEMBLY 		JEKTSF-607
INDIVIDUAL PARTS
KEY ITEM JUNIPER
PART NUMBER 		SELECTOR
RESULTS 		QUANTITY
REQUIRED
GG HINGE ARM, LEFT JE4146-21
HH HINGE ARM, RIGHT JE4146-22
CC HINGE PIN JE1474-46
DD WASHER JE1474-48
EE M COTTER PIN JE1474-47
FF HINGE PAD JE4145-36
A BRACE LINK, LARGE JE4145-50
B BRACE LINK, SMALL JE4145-51
C HEX HEAD BOLT JE4144-62
D ROLL SPRING PIN JE4147-69
E SPRING SLEEVE JE4146-50
G HEX NUT JE5384-10
H SPRING JE4146-48
K LARGE BRACE PIN JE4174-70
L BRACE PIN JE4174-47
N BRACE PAD, LONG JE4146-36
P SPRING RETAINER JE4146-49
Q BRACE PAD, SHORT JE4146-45
