JUNIPER WATERTIGHT DOORS


Our automated information request service is temporarily unavailable.  Please contact us by fax or phone while we work to improve this website.  Sorry for the inconvenience.

INDIVIDUALLY DOGGED DOORS
Dogging Assist/CPS Latch Hinge Assembly Hinge Assembly Individual Dog Assembly Individual Dog Assembly Individual Dog Assembly Individual Dog Assembly Individual Dog Assembly Individual Dog Assembly Individual Dog Assembly Individual Dog Assembly Individual Dog Assembly Individual Dog Assembly Fixed Light Assembly

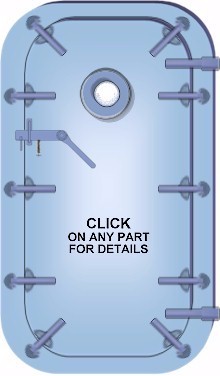

Individually Dogged Door
EXAMPLE SHOWN:
JUNIPER PART # JE261-DI-32
10 DOG RIGHT HAND
INDIVIDUALLY DOGGED DOOR
(OUTSIDE VIEW)

I.A.W. NAVSEA DRAWINGS
803-6397261 & 803-6397262


JUNIPER INDUSTRIES, INC.
72-15 METROPOLITAN AVENUE
POST OFFICE BOX 148
MIDDLE VILLAGE, NY 11379
PHONE (718) 326 2546
FAX (718) 326 3786
EMAIL
 COMPLETE DOOR  DOOR DESCRIPTION
JUNIPER
PART NUMBER 		SIZE  HAND   NO. OF
DOGS 		 PANEL
THICK 		 NAVSEA
STD
TEST
PRESS
JE261-DI-01  18 X 36  L 4 0.075 6
JE261-DI-02 18 X 36 R 4 0.075 6
JE261-DI-03 18 X 36 L 6 0.075 19
JE261-DI-04 18 X 36 R 6 0.075 19
JE261-DI-05 18 X 36 L 6 0.075 26
JE261-DI-06 18 X 36 R 6 0.075 26
JE261-DI-07 26 X 45 L 6 0.075 10
JE261-DI-08 26 X 45 R 6 0.075 10
JE261-DI-09 26 X 45 L 8 0.075 21
JE261-DI-10 26 X 45 R 8 0.075 21
JE261-DI-11 26 X 45 L 10 0.120 32
JE261-DI-12 26 X 45 R 10 0.120 32
JE261-DI-13 26 X 45 L 12 0.120 37
JE261-DI-14 26 X 45 R 12 0.120 37
JE261-DI-15 26 X 54 L 6 0.075 7
JE261-DI-16 26 X 54 R 6 0.075 7
JE261-DI-17 26 X 54 L 8 0.075 16
JE261-DI-18 26 X 54 R 8 0.075 16
JE261-DI-19 26 X 54 L 10 0.075 22
JE261-DI-20 26 X 54 R 10 0.075 22
JE261-DI-21 26 X 54 L 10 0.120 28
JE261-DI-22 26 X 54 R 10 0.120 28
JE261-DI-23 26 X 57 L 6 0.075 6
JE261-DI-24 26 X 57 R 6 0.075 6
JE261-DI-25 26 X 57 L 8 0.075 9.5
JE261-DI-26 26 X 57 R 8 0.075 9.5
JE261-DI-27 26 X 57 L 10 0.075 12.5
JE261-DI-28 26 X 57 R 10 0.075 12.5
JE261-DI-29 26 X 66 L 8 0.075 10
JE261-DI-30 26 X 66 R 8 0.075 10
JE261-DI-31 26 X 66 L 10 0.075 15
JE261-DI-32 26 X 66 R 10 0.075 15
JE261-DI-33 26 X 66 L 10 0.120 5/13
JE261-DI-34 26 X 66 R 10 0.120 5/13
JE261-DI-35 30 X 66 L 8 0.075 5
JE261-DI-36 30 X 66 R 8 0.075 5
JE261-DI-37 30 X 66 L 10 0.075 15
JE261-DI-38 30 X 66 R 10 0.075 15
JE261-DI-39 30 X 66 L 10 0.120 5/13
JE261-DI-40 30 X 66 R 10 0.120 5/13


JUNIPER DOORS
INDIVIDUALLY DOGGED DOORS
REQUEST FOR QUOTATION

USE THE FORM BELOW OR, FOR A GENERIC RFQ FORM, CLICK HERE


CONFIGURATION   omega replica watches
QUANTITY
DOOR MATERIAL       STEEL
    STAINLESS STEEL
    STAINLESS STEEL (MINESWEEPER REQUIREMENTS)
    GRP
    OTHER (SPECIAL INSTRUCTIONS BELOW)
GASKET MATERIAL       MIL-R-900 NEOPRENE (BLACK)
    AA-59588 CL 3B GR 30 SILICONE (ORANGE)
    OTHER (SPECIAL INSTRUCTIONS BELOW)
FINISH       INORGANIC ZINC &
          FORMULA 150 PRIMER (INTERIOR USE)
    FLAME SPRAYED ALUMINUM &
          FORMULA 150 PRIMER (EXTERIOR USE)
    FORMULA 150 PRIMER ONLY
    NO FINISH
    OTHER (SPECIAL INSTRUCTIONS BELOW)
LIGHT       4" ROUND LIGHT
    6" ROUND LIGHT
    14 X 12 PILOT HOUSE LIGHT
    NONE
    OTHER (PROVIDE SPECIAL INSTRUCTIONS BELOW)
LATCH       LATCH WITH RAMPED KEEPER
    LATCH WITH STRAIGHT KEEPER
    NO LATCH
HASP AND STAPLE

SPECIAL INSTRUCTIONS



YOUR CONTACT INFORMATION

FIRST NAME
LAST NAME
TITLE
ORGANIZATION
ADDRESS
CITY  (OR "FPO")
STATE
POST CODE
COUNTRY
PHONE
FAX
EMAIL ADDRESS



INDIVIDUAL DOG ASSEMBLIES
HINGE ASSEMBLIES
OPTIONAL AND MISCELLANEOUS DOOR PARTS
805 SERIES DOOR PARTS
WEDGES, DOG SLEEVES, AND FRAME STIFFENERS
HOW TO PERFORM A GASKET CHALK TEST
