HINGE ASSEMBLIES
HINGE BLADES, HINGE PADS
AND HINGE WEAR PARTS KITS

Hinge Assembly

COMPLETE HINGE ASSEMBLY
(TYPICAL LOW HINGE SHOWN)

GENERAL NOTES:
  1. STANDARD BLADES, YOKES, PADS AND GUSSETS ARE STEEL
  2. STANDARD HEX NUTS, HINGE PINS YOKE PINS AND WASHERS ARE BRASS
  3. STANDARD COTTER PINS ARE STAINLESS STEEL
  4. ALTERNATE MATERIALS AVAILABLE FOR ALL COMPONENTS
  5. THESE ASSEMBLIES MAY BE USED ON DQ-805 AND DI-805 DOORS
  6. SWAGED HINGE PINS AND HINGE PIN COLLARS TO MATCH 805 DRAWINGS AVAILABLE
  7. SPECIFY ALTERNATE MATERIALS, MODIFIED KITS OR 805 TYPE COMPONENTS IN SPECIAL INSTRUCTIONS
  8. WATERTIGHT DOORS HAVE TWO HINGES.  AIRTIGHT DOORS HAVE THREE HINGES.  TO REPLACE ALL HINGE WEAR PARTS YOU MUST ORDER TWO OR THREE KITS.


JUNIPER HINGES
HINGE COMPONENTS AND WEAR PARTS FOR QA AND ID DOORS

TO GET A QUICK PRICE QUOTATION
USE THE FORM BELOW OR CLICK HERE FOR A GENERIC FORM


KEY ITEM JUNIPER
PART NUMBER 		NUMBER
IN KIT 		QUANTITY
REQUIRED
WEAR PARTS KITS
N/A COMPLETE WEAR PARTS KIT, STEEL
INCLUDES REPLACEMENT PARTS FOR ONE HINGE 		JEHG-WP N/A
N/A COMPLETE WEAR PARTS KIT, STAINLESS
REPLACEMENT PARTS FOR ONE HINGE INCLUDE
ALL PARTS LISTED IN THIS TABLE IN TYPE 316 STAINLESS 		JEHG-SS N/A
N/A COMPLETE WEAR PARTS KIT, TYPE 805
REPLACEMENT PARTS FOR ONE HINGE INCLUDE
ALL PARTS LISTED IN THIS TABLE
EXCEPT HINGE PIN AND HINGE PIN COLLARS
ARE IAW DWG 805-1400054 		JEHG-805 N/A
HINGE WEAR PARTS FOR WATERTIGHT DOORS
C HINGE PIN JE269-164 1
D HINGE PIN HEX NUT JE269-165 1
E COTTER PIN FOR HINGE PIN JE269-166 1
F HINGE PIN WASHER JE269-169 3
G HINGE YOKE JE269-162 1
H YOKE PIN JE269-167 1
J COTTER PIN FOR YOKE PIN JE269-168 1
K YOKE PIN WASHER JE269-170 1

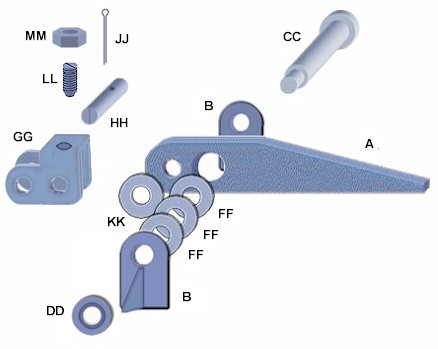

COMPLETE AIRTIGHT HINGE ASSEMBLY
(TYPICAL LOW HINGE SHOWN)

JUNIPER HINGES
HINGE COMPONENTS AND WEAR PARTS FOR AIRTIGHT DOORS

KEY ITEM JUNIPER
PART NUMBER 		NUMBER
IN KIT 		QUANTITY
REQUIRED
WEAR PARTS KITS
N/A COMPLETE WEAR PARTS KIT
REPLACEMENT PARTS FOR ONE HINGE INCLUDE
ALL PARTS AND QUANTITIES LISTED IN THIS TABLE 		JEHG-AT N/A
HINGE WEAR PARTS FOR AIRTIGHT DOORS
CC HINGE PIN JEAT-6 1
DD HINGE PIN COLLAR JEAT-7 1
FF HINGE PIN WASHER JEAT-9 3
GG ADJUSTING HINGE YOKE JEAT-14 1
HH YOKE PIN JEAT-8 1
JJ COTTER PIN FOR YOKE PIN JEAT-11 1
KK YOKE PIN WASHER JEAT-10 1
LL SET SCREW JEAT-15 1
MM SET SCREW HEX NUT JEAT-16 1


JUNIPER HINGES
HINGE BLADES AND HINGE PADS

TO GET A QUICK PRICE QUOTATION
USE THE FORM BELOW OR CLICK HERE FOR A GENERIC FORM

FOR STANDARD LOW HINGE ASSEMBLY
KEY NOT TO SCALE ITEM JUNIPER
PART NUMBER 		QUANTITY
REQUIRED
A HINGE BLADE
STEEL 		JE269-148
HINGE BLADE
STAINLESS 		JE269-149
B HINGE PAD
STEEL 		JE269-153
HINGE PAD
STAINLESS 		JE269-154
HINGE PAD W/GUSSET
STEEL*
JE269-153/158
HINGE PAD W/GUSSET
STAINLESS* 		JE269-154/160
FOR STANDARD HIGH HINGE ASSEMBLY
A
HINGE BLADE
STEEL
 JE269-151
HINGE BLADE
STAINLESS
 JE269-152
B HINGE PAD
STEEL 		JE269-156
HINGE PAD
STAINLESS 		JE269-157
HINGE PAD W/GUSSET
STEEL* 		JE269-156/159
HINGE PAD W/GUSSET
STAINLESS* 		JE269-157/161
FOR MODIFIED LOW HINGE ASSEMBLY USED ON 36X66 10 DOG QA DOORS
A
HINGE BLADE
STEEL
 JE269-150
HINGE BLADE
STAINLESS
JE269-150S
B HINGE PAD
STEEL 		JE269-155
HINGE PAD
STAINLESS 		JE269-155S
HINGE PAD W/GUSSET
STEEL* 		JE269-155/158
HINGE PAD W/GUSSET
STAINLESS* 		JE269-155S/160
HINGE BLADE FOR GRP DOORS
A Blade for GRP door
HINGE BLADE
STAINLESS STEEL
 JE905-56
* PLEASE SPECIFY HAND OF DOOR
WHEN ORDERING HINGE PADS WITH GUSSETS   		     NOT APPLICABLE
     RIGHT HAND
     LEFT HAND


SPECIAL INSTRUCTIONS



YOUR CONTACT INFORMATION

FIRST NAME
LAST NAME
TITLE
ORGANIZATION
ADDRESS
CITY  (OR "FPO")
STATE
POST CODE
COUNTRY
PHONE
FAX
EMAIL ADDRESS




OPTIONAL AND MISCELLANEOUS DOOR PARTS
805 SERIES DOOR PARTS
