JUNIPER WATERTIGHT DOORS


INDIVIDUAL DOG ASSEMBLIES
FOR JUNIPER INDIVIDUALLY DOGGED WATERTIGHT DOORS SERIES DI-261
I.A.W. NAVSEA DWGS. 803-6397261 & 803-6397262


Individual Dog Assmbly

GENERAL NOTES:
  1. DOG ASSEMBLIES AND COMPONENTS ARE ALSO AVAILABLE FOR 805 SERIES DOORS
  2. 805 SERIES USES "OILITE" BRONZE BEARINGS
  3. 805 SERIES REQUIRES STRING AND STICK PACKING AND PLUNGERS
  4. PACKING, PLUNGERS, ETC., ARE ON THE OPTIONAL AND MISCELLANEOUS PARTS PAGE
  5. PLATED JAM NUTS, STAINLESS LOCK NUTS, STEEL DOGS AND STEEL DOG HANDLES AVAILABLE
  6. PLEASE SPECIFY 805 ITEMS OR ALTERNATE MATERIALS IN SPECIAL INSTRUCTIONS BELOW
  7. SHORT DOG KIT IS USED WHEN DOG AND HINGE ARE IN CLOSE PROXIMITY TO AVOID A PINCH POINT
    1. SHORT DOG KIT IS USED ON 26 X 45 10-DOG DOORS BENEATH TOP HINGE
    2. SHORT DOG KITS ARE USED ON 26 X 45 12 DOG DOORS BENEATH TOP HINGE AND BOTTOM HINGE


JUNIPER DOORS
INDIVIDUALLY DOGGED DOORS
DOG ASSEMBLIES AND DOG COMPONENTS

TO GET A QUICK PRICE QUOTATION
USE THE FORM BELOW OR CLICK HERE FOR A GENERIC FORM

KEY ITEM JUNIPER
PART NO. 		QUANTITY
REQUIRED

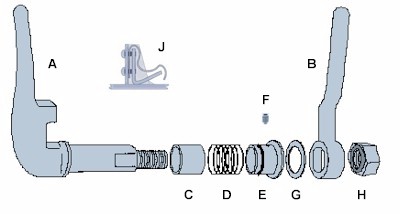

A INDIVIDUAL DOG (STANDARD) JE262-1
INDIVIDUAL DOG (SHORT) (SEE NOTE 7) JE262-2
B INSIDE HANDLE JE262-3
C STRAIGHT BEARING JE262-4
D SPRING JE262-11
E FLANGED BEARING JE262-5
F SETSCREW JE262-8
G WASHER JE262-10
H LOCKNUT JE262-9
N/A PLUG (FOR DOG WITH GREASE HOLE) JE262-NP
J SPRING CLIP ASSEMBLY JE262-SCA
COMPLETE DOG ASSEMBLY AND WEAR PARTS KITS
DOG ASSEMBLY KITS INCLUDE 1 EACH PART A OF CORRECT LENGTH (SEE NOTE 7)
AND ONE EACH PARTS B THROUGH H

WEAR PARTS KITS INCLUDE 1 EACH ALL PARTS C THROUGH H
KIT TYPE JUNIPER
PART NO. 		QUANTITY
REQUIRED
INDIVIDUAL DOG ASSEMBLY KIT, STANDARD DOG JEID-1
INDIVIDUAL DOG ASSEMBLY KIT, SHORT DOG JEISD-1
ID BEARING WEAR PARTS KIT JEIB-1
ID DOG KIT ALL FOUR-DOG DOORS
4 EACH JEID-1 		JEID-4
ID DOG KIT ALL SIX-DOG DOORS
6 EACH JEID-1 		JEID-6
ID DOG KIT ALL EIGHT-DOG DOORS
8 EACH JEID-1 		JEID-8
ID DOG KIT ALL TEN-DOG DOORS EXCEPT 26 X 45
10 EACH JEID-1 		JEID-10
ID DOG KIT 26 X 45 TEN-DOG DOORS
9 EACH JEID-1, 1 EACH JEISD-1 		JEID-91
ID DOG KIT 26 X 45 TWELVE-DOG DOORS
10 EACH JEID-1, 2 EACH JEISD-1 		JEID-102
BEARING AND WEAR PARTS KIT FOR ALL FOUR-DOG ID DOORS
4 EACH JEIB-1 		JEIB-4
BEARING AND WEAR PARTS KIT FOR ALL SIX-DOG ID DOORS
6 EACH JEIB-1 		JEIB-6
BEARING AND WEAR PARTS KIT FOR ALL EIGHT-DOG ID DOORS
8 EACH JEIB-1 		JEIB-8
BEARING AND WEAR PARTS KIT FOR ALL TEN-DOG ID DOORS
10 EACH JEIB-1 		JEIB-10
BEARING AND WEAR PARTS KIT FOR ALL TWELVE-DOG ID DOORS
12 EACH JEIB-1 		JEIB-12


SPECIAL INSTRUCTIONS



YOUR CONTACT INFORMATION

FIRST NAME
LAST NAME
TITLE
ORGANIZATION
ADDRESS
CITY  (OR "FPO")
STATE
POST CODE
COUNTRY
PHONE
FAX
EMAIL ADDRESS



WEDGES, DOG SLEEVES, AND FRAME STIFFENERS
HINGE ASSEMBLIES
OPTIONAL AND MISCELLANEOUS DOOR PARTS
805 SERIES DOOR PARTS
