JUNIPER DOUBLE DOORS


Our automated information request service is temporarily unavailable.  Please contact us by fax or phone while we work to improve this website.  Sorry for the inconvenience.

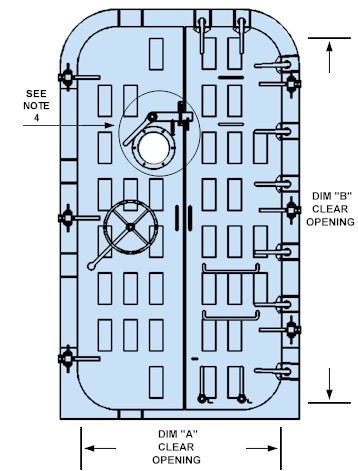

DOUBLE DOOR, WHEEL OPERATED
PART NO. JEDD-3580
Double door, wheel operated
GENERAL NOTES:
  1. STANDARD CLEAR OPENING 60" X 75"
  2. NUMBER OF DOGS TO BE SPECIFIED
  3. MATERIAL:  STEEL PANEL AND FRAME
  4. LATCH (SHOWN ABOVE):  OPTIONAL
  5. HARDWARE:  VARIOUS
  6. ALTERNATE MATERIALS AVAILABLE


JUNIPER DOORS
DOUBLE DOORS
REQUEST FOR QUOTATION

USE THE FORM BELOW OR, FOR A GENERIC RFQ FORM, CLICK HERE

DIM "A" CLEAR OPENING
DIM "B" CLEAR OPENING
QUANTITY
NUMBER OF DOGS
DOOR MATERIAL       STEEL
    STAINLESS STEEL
    STAINLESS STEEL (MINESWEEPER REQUIREMENTS)
    ALUMINUM
    ALUMINUM (MINESWEEPER REQUIREMENTS)
    GRP
    OTHER (SPECIAL INSTRUCTIONS BELOW)
FIXED LIGHT       ROUND 4-INCH DIAMETER
    ROUND 6-INCH DIAMETER
    OTHER (SPECIAL INSTRUCTIONS BELOW)
    NONE
GASKET MATERIAL       MIL-R-900 NEOPRENE (BLACK)
    AA-59588 CL 3B GR 30 SILICONE (ORANGE)
    OTHER (SPECIAL INSTRUCTIONS BELOW)
FINISH       INORGANIC ZINC &
          FORMULA 150 PRIMER (INTERIOR USE)
    FLAME SPRAYED ALUMINUM &
          FORMULA 150 PRIMER (EXTERIOR USE)
    FORMULA 150 PRIMER ONLY
    NO FINISH
    OTHER (SPECIAL INSTRUCTIONS BELOW)
LATCH
HASP AND STAPLE

SPECIAL INSTRUCTIONS




YOUR CONTACT INFORMATION

FIRST NAME
LAST NAME
TITLE
ORGANIZATION
ADDRESS
CITY  (OR "FPO")
STATE
POST CODE
COUNTRY
PHONE
FAX
EMAIL ADDRESS



DOUBLE DOOR WITH DOGS IN PANEL
DOUBLE DOOR WITH DOGS IN FRAME
DOUBLE DOOR WITH QA AND ID MECHANISMS
DOUBLE DOOR WITH PERSONNEL DOOR
CARGO DOOR
WEDGES AND DOG SLEEVES FOR ALL DOUBLE DOORS
HINGE ASSEMBLIES
OPTIONAL AND MISCELLANEOUS DOOR PARTS
805 SERIES DOOR PARTS
