Juniper Industries, Inc.

JUNIPER DOUBLE DOORS


DOOR, DOUBLE
PART NO. JEDD-6537
DOGS IN FRAME

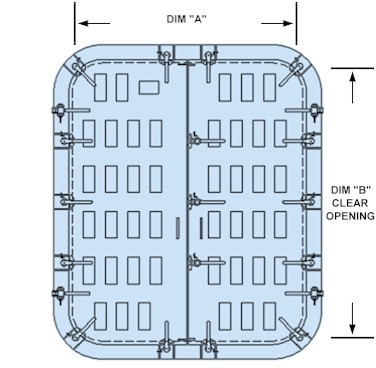

Double door, dogs in frame and panel
GENERAL NOTES:
  1. STANDARD CLEAR OPENING 60" X 73"
  2. TEST PRESSURE TO BE SPECIFIED
  3. DOGS EXCEPT THOSE BETWEEN LEAVES MOUNTED IN FRAME
  4. MATERIAL:  STEEL PANEL AND FRAME
  5. HARDWARE:  VARIOUS
  6. ALTERNATE MATERIALS AVAILABLE


JUNIPER DOORS
DOUBLE DOORS
REQUEST FOR QUOTATION

USE THE FORM BELOW OR, FOR A GENERIC RFQ FORM, CLICK HERE

DIM "A" CLEAR OPENING
DIM "B" CLEAR OPENING
QUANTITY
ACTIVE LEAF      LEFT       RIGHT
TEST PRESSURE (PSI)
PRESSURE TEST TYPE      SEATING       UNSEATING
NUMBER OF DOGS
DOOR MATERIAL       STEEL
    STAINLESS STEEL
    STAINLESS STEEL (MINESWEEPER REQUIREMENTS)
    ALUMINUM
    ALUMINUM (MINESWEEPER REQUIREMENTS)
    GRP
    OTHER (SPECIAL INSTRUCTIONS BELOW)
GASKET MATERIAL       MIL-R-900 NEOPRENE (BLACK)
    AA-59588 CL 3B GR 30 SILICONE (ORANGE)
    OTHER (SPECIAL INSTRUCTIONS BELOW)
FINISH       INORGANIC ZINC &
          FORMULA 150 PRIMER (INTERIOR USE)
    FLAME SPRAYED ALUMINUM &
          FORMULA 150 PRIMER (EXTERIOR USE)
    FORMULA 150 PRIMER ONLY
    NO FINISH
    OTHER (SPECIAL INSTRUCTIONS BELOW)
HASP AND STAPLE

SPECIAL INSTRUCTIONS
