JUNIPER HINGE UPGRADE KIT
FOR LOW HINGE DOORS

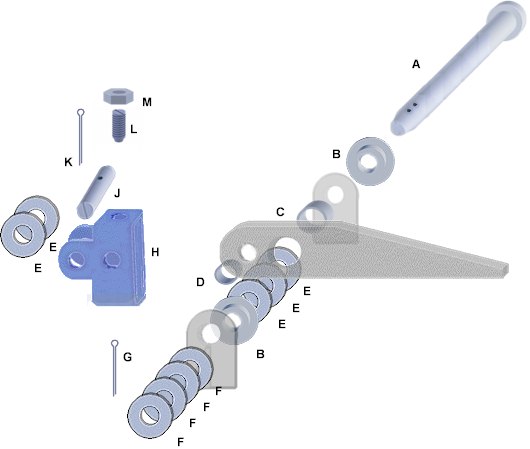

Low Hinge Upgrade Kit


COMPLETE LOW HINGE UPGRADE KIT
(TYPICAL LOW HINGE FOR AIRTIGHT DOOR SHOWN)
SIMILAR TO MACHALT 167-31011 ECP MA-538


JUNIPER JE538 SERIES HINGE UPGRADE KITS AND THEIR COMPONENTS MEET NAVSEA MACHALT SPECIFICATIONS.  THE KITS ENABLE HINGES BASED ON OLDER BEARING TECHNOLOGY TO PROVIDE THE SAME LONG LIFE CHARACTERISTICS AS NEW HINGES SPECIFIED IN THE MOST RECENT NAVSEA WATERTIGHT DOOR DRAWINGS.  HINGES BASED ON THIS TECHNOLOGY ARE DESIGNED FOR A LIFETIME IN EXCESS OF 1,000,000 OPERATING CYCLES.  JUNIPER KITS PERMIT A COMPLETE DOOR HINGE RETROFIT TO BE COMPLETED WITH NO HOT WORK.
GENERAL NOTES:
  1. YOKE INCLUDES FACTORY INSTALLED BUSHINGS
  2. YOKE BUSHINGS MAY EXHIBIT DIMINISHED LOAD BEARING PERFORMANCE OR REDUCED LIFE IF REPLACED IN THE FIELD BY UNAUTHORIZED PROCEDURES
  3. YOKE INSTALLED AS SHOWN ON AIRTIGHT DOORS
  4. YOKE INSTALLED IN INVERTED POSITION (TAPPED HOLE FACING BULKHEAD) ON WATERTIGHT DOORS
  5. KIT FOR WATERTIGHT DOOR DOES NOT INCLUDE SETSCREW AND HEX NUT
  6. HINGE PIN, YOKE PIN AND COTTER PINS ARE TYPE 316 STAINLESS STEEL
  7. KITS INCLUDE EXTRA WASHERS THAT MAY BE USED TO IMPROVE FIT OF HINGE PIN AND ITS COTTER PIN Panerai Replica Watches




JUNIPER HINGE UPGRADE KITS
JE538-MK-AT HINGE JE538-MK-WT
AND THEIR COMPONENTS
FOR QA AND ID LOW HINGE DOORS

TO GET A QUICK PRICE QUOTATION
USE THE FORM BELOW OR CLICK HERE FOR A GENERIC FORM

KEY ITEM JUNIPER
PART NUMBER 		NUMBER
IN KIT 		QUANTITY
REQUIRED
UPGRADE KITS
N/A COMPLETE UPGRADE KIT
FOR LOW HINGE AIRTIGHT DOOR
THREE KITS REQUIRED PER DOOR
 		JE538-MK-AT N/A
N/A COMPLETE UPGRADE KIT
FOR LOW HINGE WATERTIGHT DOOR
TWO KITS REQUIRED PER DOOR
 		JE538-MK-WT N/A
HINGE UPGRADE PARTS FOR LOW HINGE DOORS
A HINGE PIN JE269-198 1
B HINGE PAD BUSHING JE269-202 2
C HINGE PIN SPACER JEHTD-HBB 1
D YOKE PIN SPACER
0.6265/0.6260 OD
 		JE689-18E 1
D YOKE PIN SPACER (BLUE)
0.6295/0.6290 OD
 		JE689-18E1 1
D YOKE PIN SPACER (ORANGE)
0.6325/0.6320 OD
 		JE689-18E2 1
D YOKE PIN SPACER (SILVER)
0.6355/0.6350 OD
 		JE689-18E3 1
D YOKE PIN SPACER (YELLOW)
0.6385/0.6850 OD
 		JE689-18E4 1
D YOKE PIN SPACER (GREEN)
0.6415/0.6410 OD
 		JE689-18E5 1
D YOKE PIN SPACER (BLACK)
0.6445/0.6440 OD
 		JE689-18E6 1
E THRUST WASHER
(INCLUDES ONE SPARE)
 		JE269-204 6
F WASHER, STAINLESS STEEL JE269-205 4
G COTTER PIN FOR HINGE PIN JE269-201 1
H YOKE ASSEMBLY
(INCLUDES 4 YOKE BUSHINGS INSTALLED IN YOKE)
 		JE269-196AY 1
J YOKE PIN JE269-199 1
K COTTER PIN FOR YOKE PIN JE269-200 1
L SET SCREW
 FOR AIRTIGHT DOORS ONLY
 		JE054-15 1
M HEX NUT
 FOR AIRTIGHT DOORS ONLY
 		JE054-16 1
