GENERAL INFORMATION

A QUICK ACTING DOG ASSEMBLY INCLUDES A TYPE 316 STAINLESS STEEL ROTATING DOG, SPRING, WASHER, SET SCREW, ZINC PLATED HEX NUT, STAINLESS STEEL SELF-LUBRICATING STRAIGHT BEARING AND FLANGED BEARING. THE FLANGED BEARING INCLUDES A NITRILE INTERNAL SEAL AND EXTERNAL O-RING. THE DOG ASSEMBLY FITS THE DOG SPINDLE WHICH IS PART OF THE LEVER ASSEMBLIES.

THE SELF-LUBRICATING BEARING SYSTEM IS DESIGNED TO MINIMIZE MAINTENANCE AND ELIMINATE THE NEED FOR STRING AND STICK PACKING. IT IS RECOMMENDED FOR STEEL, STAINLESS STEEL AND ALUMINUM DOORS. IT IS ALSO RECOMMENDED FOR RETROFIT IN DOORS USING "OILITE" BEARINGS MADE I.A.W. THE OLDER NAVSEA 805 SERIES DRAWINGS.

REPLACEMENT "OILITE" BEARINGS AND MILD STEEL DOGS IN LIEU OF 316 STAINLESS ARE AVAILABLE IF REQUESTED.

STAINLESS STEEL HEX NUTS ARE AVAILABLE.

ADDITIONAL PARTS THAT MAY BE NEEDED FOR REPAIR WORK OR NEW CONSTRUCTION ARE DOG SLEEVES, FRAME STIFFENERS AND WEDGES. WEDGES ARE AVAILABLE IN ALUMINUM BRONZE AND STAINLESS STEEL.

JUNIPER SUPPLIES SINGLE DOG ASSEMBLY KITS, WHOLE DOOR DOG ASSEMBLY KITS, SINGLE BEARING AND WEAR PARTS REPLACEMENT KITS AND WHOLE DOOR BEARING AND WEAR PART REPLACEMENT KITS. THE DIFFERENCE BETWEEN COMPLETE ASSEMBLY KITS AND WEAR PARTS KITS IS THAT EACH COMPLETE ASSEMBLY KIT INCLUDES A STAINLESS STEEL QUICK ACTING DOG. JUNIPER ALSO SUPPLIES ALL INDIVIDUAL COMPONENTS FOR THESE KITS.

PLEASE SPECIFY LONG BEARING KITS FOR USE WITH LONG SPINDLES. SEE FULL DOOR KITS IN THE TABLE BELOW FOR EXAMPLES OF LONG SPINDLE USAGE ON JUNIPER QUICK ACTING DOORS.

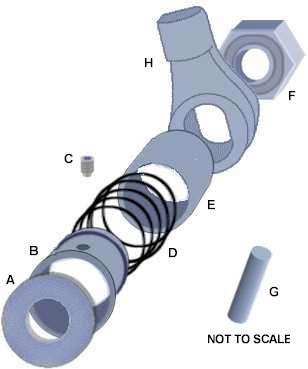

KEY	ITEM	JUNIPER PART NO.	QUANTITY REQUIRED
A	WASHER	JE269-105
B	FLANGED BEARING	JE269-99
C	SET SCREW	JE269-102
D	SPRING	JE269-106
E	STRAIGHT BEARING, STANDARD	JE269-97
STRAIGHT BEARING, LONG	JE269-98
F	LOCK NUT	JE269-104
G	PLUG (USED IF DOG SPINDLE HAS PACKING HOLE)	JE269-NP
H	QUICK ACTING DOG, TYPE 316 STAINLESS STEEL	JE269-94
QUICK ACTING DOG, MILD STEEL	JE269-94MS
COMPLETE DOG ASSEMBLY AND WEAR PARTS KITS DOG ASSEMBLY KITS INCLUDE 1 EACH ALL PARTS A THROUGH H WEAR PARTS KITS INCLUDE 1 EACH ALL PARTS A THROUGH G
KIT TYPE	JUNIPER PART NO.	QUANTITY REQUIRED
QUICK ACTING DOG ASSEMBLY KIT, STANDARD	JEQD-1
QUICK ACTING DOG ASSEMBLY KIT, LONG	JEQDL-1
QA BEARING AND WEAR PARTS KIT, STANDARD,	JEQB-1
QA BEARING AND WEAR PARTS KIT, LONG	JEQBL-1
QA DOG KIT ALL SIX-DOG DOORS 6 EACH JEQD-1	JEQD-6
QA DOG KIT ALL EIGHT-DOG DOORS EXCEPT 26 X 45 8 EACH JEQD-1	JEQD-8
QA DOG KIT ALL TEN-DOG DOORS EXCEPT 26 X 45, 26 X 54 AND 26 X 57 10 EACH JEQD-1	JEQD-10
QA DOG KIT 26 X 45 EIGHT-DOG DOORS 7 EACH JEQD-1, 1 EACH JEQDL-1	JEQDL-71
QA DOG KIT 26 X 45, 26 X 54 AND 26 X 57 TEN-DOG DOORS 9 EACH JEQD-1, 1 EACH JEQDL-1	JEQDL-91
BEARING AND WEAR PARTS KIT FOR ALL SIX-DOG QA DOORS 6 EACH JEQB-1	JEQB-6
BEARING AND WEAR PARTS KIT FOR ALL EIGHT-DOG QA DOORS EXCEPT 26 X 45 8 EACH JEQB-1	JEQB-6
BEARING AND WEAR PARTS KIT FOR ALL TEN-DOG QA DOORS EXCEPT 26 X 45, 26 X 54 AND 26 X 57 10 EACH JEQB-1	JEQB-10
BEARING AND WEAR PARTS KIT FOR 26 X 45 EIGHT-DOG QA DOORS 7 EACH JEQB-1, 1 EACH JEQBL-1	JEQBL-71
BEARING AND WEAR PARTS KIT FOR 26 X 45, 26 X 54 AND 26 X 57 TEN-DOG QA DOORS 9 EACH JEQB-1, 1 EACH JEQBL-1	JEQBL-91

KEY

ITEM

JUNIPER
PART NO.

QUANTITY
REQUIRED

WASHER

JE269-105

FLANGED BEARING

JE269-99

SET SCREW

JE269-102

SPRING

JE269-106

STRAIGHT BEARING, STANDARD

JE269-97

STRAIGHT BEARING, LONG

JE269-98

LOCK NUT

JE269-104

PLUG
(USED IF DOG SPINDLE HAS PACKING HOLE)

JE269-NP

QUICK ACTING DOG, TYPE 316 STAINLESS STEEL

JE269-94

QUICK ACTING DOG, MILD STEEL

JE269-94MS

COMPLETE DOG ASSEMBLY AND WEAR PARTS KITS
DOG ASSEMBLY KITS INCLUDE 1 EACH ALL PARTS A THROUGH H
WEAR PARTS KITS INCLUDE 1 EACH ALL PARTS A THROUGH G

KIT TYPE

JUNIPER
PART NO.

QUANTITY
REQUIRED

QUICK ACTING DOG ASSEMBLY KIT, STANDARD

JEQD-1

QUICK ACTING DOG ASSEMBLY KIT, LONG

JEQDL-1

QA BEARING AND WEAR PARTS KIT, STANDARD,

JEQB-1

QA BEARING AND WEAR PARTS KIT, LONG

JEQBL-1

QA DOG KIT ALL SIX-DOG DOORS
6 EACH JEQD-1

JEQD-6

QA DOG KIT ALL EIGHT-DOG DOORS EXCEPT 26 X 45
8 EACH JEQD-1

JEQD-8

QA DOG KIT ALL TEN-DOG DOORS
EXCEPT 26 X 45, 26 X 54 AND 26 X 57
10 EACH JEQD-1

JEQD-10

QA DOG KIT 26 X 45 EIGHT-DOG DOORS
7 EACH JEQD-1, 1 EACH JEQDL-1

JEQDL-71

QA DOG KIT 26 X 45, 26 X 54
AND 26 X 57 TEN-DOG DOORS
9 EACH JEQD-1, 1 EACH JEQDL-1

JEQDL-91

BEARING AND WEAR PARTS KIT FOR
ALL SIX-DOG QA DOORS
6 EACH JEQB-1

JEQB-6

BEARING AND WEAR PARTS KIT FOR
ALL EIGHT-DOG QA DOORS EXCEPT 26 X 45
8 EACH JEQB-1

JEQB-6

BEARING AND WEAR PARTS KIT FOR ALL TEN-DOG
QA DOORS EXCEPT 26 X 45, 26 X 54 AND 26 X 57
10 EACH JEQB-1

JEQB-10

BEARING AND WEAR PARTS KIT FOR
26 X 45 EIGHT-DOG QA DOORS
7 EACH JEQB-1, 1 EACH JEQBL-1

JEQBL-71

BEARING AND WEAR PARTS KIT FOR
26 X 45, 26 X 54 AND 26 X 57 TEN-DOG QA DOORS
9 EACH JEQB-1, 1 EACH JEQBL-1

JEQBL-91
