Juniper Industries Ballistic Door Dog Assemblies, Handles and Miscellaneous Parts

KEY	ITEM	JUNIPER PART NUMBER	NUMBER IN KIT	QUANTITY REQUIRED
PLATE THICKNESS (MUST BE SPECIFIED FOR WEAR PARTS KIT, DOG SPINDLE AND BUSHING ORDERS)

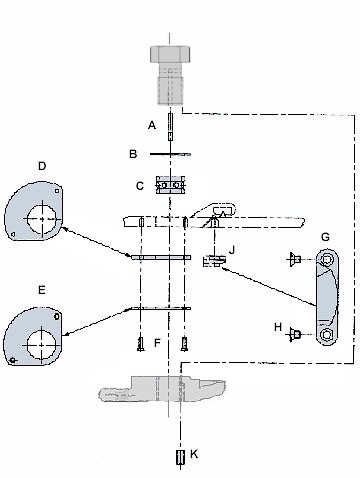

WEAR PARTS KIT (RIGHT HAND)		JEBDWPR	N/A
WEAR PARTS KIT (LEFT HAND)		JEBDWPL	N/A
INDIVIDUAL COMPONENTS

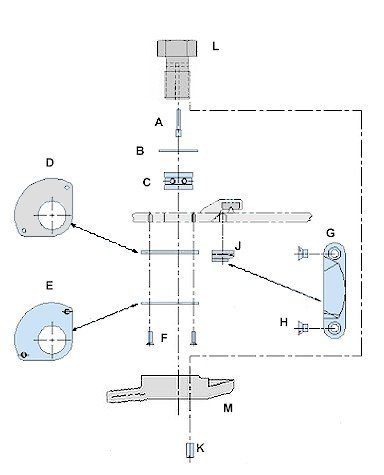

A	PACKING PLUNGER	JE163-17	1
B	BUSHING WASHER	JE163-7	1
C	BUSHING, SPLIT BE SURE TO SPECIFY PLATE THICKNESS	JE163-6	1
D	BEARING LINER (STEEL)	JE163-9	1
E	BEARING PLATE (BRASS)	JE163-8	1
F	BEARING SCREWS	JE163-10	2
G	RIGHT HAND WEDGE	JE163-13	1
G	LEFT HAND WEDGE	JE163-12	1
H	WEDGE SCREWS	JE163-14	2
J	WEDGE LINER	JE163-15	1
K	SET SCREW	JE163-11	1
NOT TO SCALE		ITEM	JUNIPER PART NUMBER	QUANTITY REQUIRED
		QA DOG SPINDLE PLEASE SPECIFY PLATE THICKNESS	JE161-9
		QUICK ACTING DOG (BEARING SURFACE SHOWN) RIGHT HAND DOG FOR USE ON LEFT HAND DOOR	JE161-4
		QUICK ACTING DOG (BEARING SURFACE SHOWN) LEFT HAND DOG FOR USE ON RIGHT HAND DOOR	JE161-5
		INSIDE HANDLE WELDED TO DOG FOR USE ON LEFT HAND DOOR	JE161-20/4
		INSIDE HANDLE WELDED TO DOG FOR USE ON RIGHT HAND DOOR	JE161-20/5
		OUTSIDE HANDLE WELDED TO SPINDLE	JE161-21/9
		DOOR CATCH ASSEMBLY	JEBDCH
		QA HANDLE CATCH ASSEMBLY	JEBHCH
		HASP ASSEMBLY TYPE A FOR BALLISTIC DOORS	JEB-HSP-A
		HASP ASSEMBLY TYPE B FOR BALLISTIC DOORS	JEB-HSP-B
		SAFETY HOOK WEDGE	JE164-13
		SAFETY HOOK	JE164-12

PIPE LEVER ASSEMBLY SHOWN ABOVE INCLUDES 1 PIPE LEVER JE262-43 1 U-CLIP JE262-45 1 QUICK RELEASE PIN JE 262-49 1 STOWAGE BASE JE262-44 2 SWAGING SLEEVE JE262-51 1 WIRE ROPE JE262-50 2 HEX NUT JE262-48 2 WASHER JE262-47 2 STUD JE262-46		PIPE LEVER ASSEMBLY	JE261-PL

ASSEMBLY SHOWN ABOVE INCLUDES 1 12" ARM JE269-191 1 CAP JE269-193 1 BUMPER JE269-190 1 SCREW JE269-195		BUMPER ASSEMBLY STEEL CRUTCH TIP DESIGN ALSO AVAILABLE REQUEST IN SPECIAL INSTRUCTIONS	JEBA-MM
ASSEMBLY SHOWN ABOVE INCLUDES 1 12" ARM JE269-191 1 CAP JE269-194 1 BUMPER JE269-192 1 SCREW JE269-195		BUMPER ASSEMBLY STAINLESS CRUTCH TIP DESIGN ALSO AVAILABLE REQUEST IN SPECIAL INSTRUCTIONS	JEBA-NN
		HOOK ASSEMBLY 1 HOOK STANLESS STEEL 3 STAPLES STAINLESS STEEL	JEHH-LL
GASKETS NAVSEA HAS APPROVED A NEW GASKET DESIGN, JUNIPER PART NO. JE4503-ZZ. THIS GASKET, MADE OF SILICONE RUBBER ZZ-R-765 CLASS 3B GRADE 30, IS SUPERIOR TO BOTH THE NEOPRENE MIL-R-900 GASKET (WHICH IS NOT RATED FOR FIRE ZONES) AND THE FIRE ZONE RATED MIL-G-17927 (WHICH HAS NEVER PERFORMED AS EXPECTED). THIS GASKET HAS IMPROVED FIRE RESISTANT QUALITIES, IMPROVED RESISTANCE TO COMPRESSION SET AND EASIER INSTALLATION. YOU CAN INVENTORY ONE GASKET WHERE YOU PRVIOUSLY KEPT THREE STYLES ON HAND.
		GASKET 1-1/4 X 1/2 RUBBER MIL-R-900	JE269-1
		GASKET 1-1/4 X 1/2 SILICONE RUBBER ZZ-R-765	JE269-2
		GASKET WITH CHANNEL 1-1/4 X 1/2 SILICONE RUBBER ZZ-R-765	JE4503-ZZ
