Juniper Industries, Inc.

JUNIPER WEATHERTIGHT DOORS


DOOR, WEATHERTIGHT
PART NO. JE1602-89

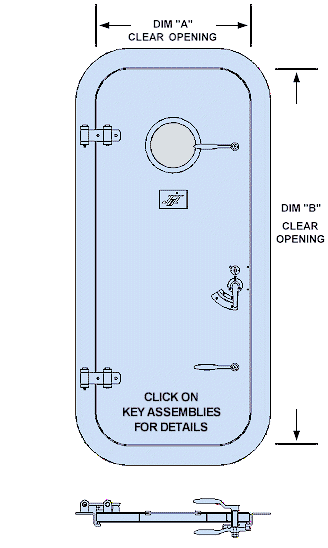

Hinge Hinge Light Latch Dog Dog Hinge Light Dog
Weather Tight Door
GENERAL NOTES:
  1. STANDARD SIZE IS 26 X 66.  USE SPECIAL INSTRUCTIONS BELOW TO REQUEST QUOTES FOR DOORS OF OTHER SIZES.
  2. STANDARD MATERIAL IS STEEL.
  3. STANDARD DOOR USES TWO INDIVIDUAL DOGS PLUS LATCH AS ILLUSTRATED.
  4. STANDARD DOOR INCLUDES 9-INCH ROUND LIGHT.  OTHER SIZES AVAILABLE.  DOOR WITH NO LIGHT AVAILABLE.  PLEASE SPECIFY ANY NON-STANDARD LIGHT REQUIREMENTS IN SPECIAL INSTRUCTIONS.
  5. DOOR IS INSULATED.
  6. ALTHOUGH THE COAST GUARD DRAWING STILL CITES A FOAM CORE GASKET, THIS GASKET HAS PROVED TO BE SUSCEPTIBLE TO DAMAGE AND IS THEREFORE A HIGH MAINTENANCE COMPONENT.  JUNIPER SUPPLIES THIS DOOR WITH A TEAR RESISTANT SILICONE GASKET.


JUNIPER DOORS
WEATHERTIGHT DOORS
REQUEST FOR QUOTATION

USE THE FORM BELOW OR, FOR A GENERIC RFQ FORM, CLICK HERE

DIM "A" WIDTH CLEAR OPENING
DIM "B" HEIGHT CLEAR OPENING
QUANTITY
DOOR MATERIAL       STEEL
    STAINLESS STEEL
    STAINLESS STEEL (MINESWEEPER REQUIREMENTS)
    ALUMINUM
    ALUMINUM (MINESWEEPER REQUIREMENTS)
    OTHER (SPECIAL INSTRUCTIONS BELOW)
GASKET MATERIAL       AA-59588 CL 3B GR 30 SILICONE (ORANGE)
    OTHER (SPECIAL INSTRUCTIONS BELOW)
FINISH       INORGANIC ZINC &
          FORMULA 150 PRIMER (INTERIOR USE)
    FLAME SPRAYED ALUMINUM &
          FORMULA 150 PRIMER (EXTERIOR USE)
    FORMULA 150 PRIMER ONLY
    NO FINISH
    OTHER (SPECIAL INSTRUCTIONS BELOW)

SPECIAL INSTRUCTIONS




YOUR CONTACT INFORMATION

FIRST NAME
LAST NAME
TITLE
ORGANIZATION
ADDRESS
CITY  (OR "FPO")
STATE
POST CODE
COUNTRY
PHONE
FAX
EMAIL ADDRESS



STEEL HINGE KITS, HINGE PARTS, LIGHTS AND LATCH
ALUMINUM HINGE KITS, HINGE PARTS, LIGHTS AND LATCH
STEEL WEATHERTIGHT DOOR DOG ASSEMBLY AND DOG PARTS
ALUMINUM WEATHERTIGHT DOOR DOG ASSEMBLY AND DOG PARTS
