Juniper Industries High Hinge Upgrade

JUNIPER WATERTIGHT DOORS

JUNIPER HINGE UPGRADE KIT
FOR HIGH HINGE DOORS

COMPLETE HIGH HINGE UPGRADE KIT

(TYPICAL HIGH HINGE FOR AIRTIGHT DOOR SHOWN)
SIMILAR TO MACHALT 167-31011 ECP MA-538

JUNIPER JE538 SERIES HINGE UPGRADE KITS AND THEIR COMPONENTS MEET NAVSEA MACHALT SPECIFICATIONS. THE KITS ENABLE HINGES BASED ON OLDER BEARING TECHNOLOGY TO PROVIDE THE SAME LONG LIFE CHARACTERISTICS AS NEW HINGES SPECIFIED IN THE MOST RECENT NAVSEA WATERTIGHT DOOR DRAWINGS. HINGES BASED ON THIS TECHNOLOGY ARE DESIGNED FOR A LIFETIME IN EXCESS OF 1,000,000 OPERATING CYCLES. JUNIPER KITS PERMIT A COMPLETE DOOR HINGE RETROFIT TO BE COMPLETED WITH NO HOT WORK.

GENERAL NOTES:

YOKE INCLUDES FACTORY INSTALLED BUSHINGS
YOKE BUSHINGS MAY EXHIBIT DIMINISHED LOAD BEARING PERFORMANCE OR REDUCED LIFE IF REPLACED IN THE FIELD BY UNAUTHORIZED PROCEDURES
YOKE INSTALLED AS SHOWN ON ALL DOORS
KIT FOR WATERTIGHT DOOR DOES NOT INCLUDE SETSCREW AND HEX NUT
YOKE, HINGE PIN, YOKE PIN AND COTTER PINS ARE TYPE 316 STAINLESS STEEL

JUNIPER HINGE UPGRADE KITS
JE538-MK-H-AT AND JE538-MK-H-WT
AND THEIR COMPONENTS
FOR QA AND ID HIGH HINGE DOORS

TO GET A QUICK PRICE QUOTATION
USE THE FORM BELOW OR CLICK HERE FOR A GENERIC FORM

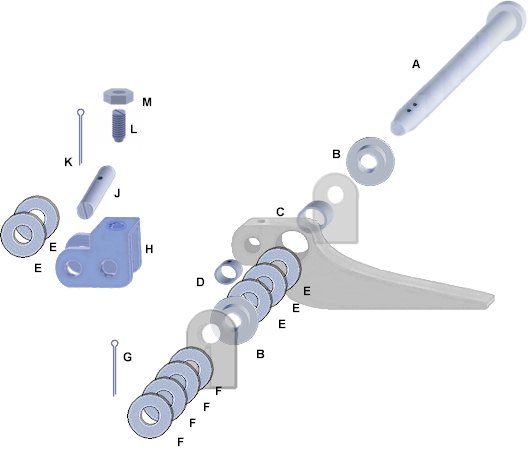

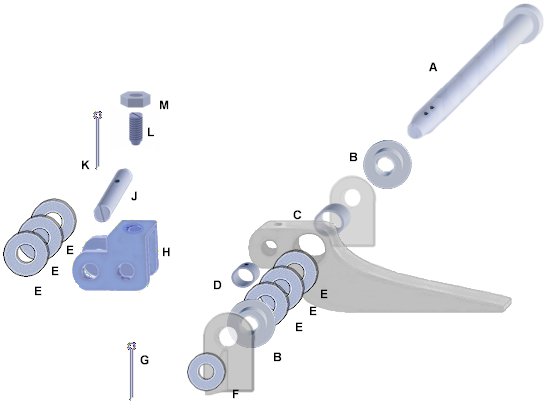

KEY	ITEM	JUNIPER PART NUMBER	NUMBER IN KIT
UPGRADE KITS
N/A	COMPLETE UPGRADE KIT FOR HIGH HINGE AIRTIGHT DOOR THREE KITS REQUIRED PER DOOR	JE538-MK-H-AT	N/A
N/A	COMPLETE UPGRADE KIT FOR HIGH HINGE WATERTIGHT DOOR TWO KITS REQUIRED PER DOOR	JE538-MK-H-WT	N/A
HINGE UPGRADE PARTS FOR HIGH HINGE DOORS
A	HINGE PIN	JE689-21E	1
B	HINGE PAD BUSHING	JEHTD-HFB	2
C	HINGE PIN SPACER	JEHTD-HBB	1
D	YOKE PIN SPACER 0.6265/0.6260 OD	JE689-18E	1
D	YOKE PIN SPACER (BLUE) 0.6295/0.6290 OD	JE689-18E1	1
D	YOKE PIN SPACER (ORANGE) 0.6325/0.6320 OD	JE689-18E2	1
D	YOKE PIN SPACER (SILVER) 0.6355/0.6350 OD	JE689-18E3	1
D	YOKE PIN SPACER (YELLOW) 0.6385/0.6850 OD	JE689-18E4	1
E	THRUST WASHER (INCLUDES ONE SPARE)	JEHTD-HW	6
F	WASHER	JEHTD-HSW	4
G	COTTER PIN FOR HINGE PIN	JE269-168	1
H	YOKE ASSEMBLY (INCLUDES 4 YOKE BUSHINGS INSTALLED IN YOKE)	JEHTD-YBH	1
J	YOKE PIN	JE689-19E	1
K	COTTER PIN FOR YOKE PIN	JE269-166B	1
L	SET SCREW FOR AIRTIGHT DOORS ONLY	JE054-15	1
M	HEX NUT FOR AIRTIGHT DOORS ONLY	JE054-16	1
