Juniper Industries, Inc.

JUNIPER WATERTIGHT DOORS


OPERATING HANDLE ASSEMBLIES
FOR JUNIPER QUICK ACTING DOORS SERIES DQ-268
I.A.W. NAVSEA DWGS. 163-7044215 & 163-7044216

First click on a Juniper door type from the list below, then scroll down to choose handle kits and parts.

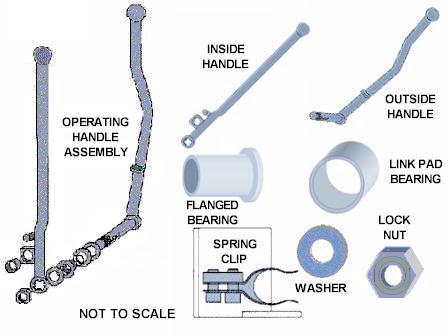

OPERATING HANDLE ASSEMBLY AND PARTS



GENERAL INFORMATION

INSIDE AND OUTSIDE OPERATING HANDLES AND HANDLE SPINDLE ARE TYPE 316 STAINLESS STEEL.  THE INSIDE HANDLE INCLUDES LINK PAD AND STOP PIN AS WELL AS THE LINK PAD BEARING.  THE OUTSIDE HANDLE INCLUDES THE APPROPRIATE SCUFF LUG.  THE SPINDLE IS WELDED TO THE OUTSIDE HANDLE TO INSURE PROPER ALIGNMENT UNLESS OTHERWISE REQUESTED.  THE SPLINED SPINDLE PROVIDES FOR A TIGHT FIT THAT IS RESISTANT TO WEAR.  DUE TO THE EXTREMELY CLOSE TOLERANCES OF THE INSIDE HANDLE AND THE SPINDLE SPLINE IT IS ADVISABLE TO ORDER AND MAINTAIN OUTSIDE HANDLES WITH SPINDLES AND INSIDE HANDLES AS MATCHED SETS.

THE SELF-LUBRICATING STAINLESS STEEL BEARING SYSTEM IS DESIGNED TO MINIMIZE MAINTENANCE AND TO ELIMINATE THE NEED FOR STICK AND STRING PACKING.  A NITRILE SEAL IS FITTED TO EACH OF THE TWO FLANGED BEARINGS.

THE SELF-LOCKING HEX NUT IS STAINLESS STEEL.

THE SPRING CLIP ASSEMBLY INCLUDES SPRING CLIPS, CAP SCREWS, LOCK WASHERS, TAPPED PLATE AND APPROPRIATE BRACKET.

SCUFF PLATES AND HANDLE SLEEVE MAY BE ORDERED SEPARATELY.

WHAT IS IN A COMPLETE OPERATING HANDLE ASSEMBLY KIT?

  • 1 INSIDE OPERATING HANDLE WITH LINK PAD AND STOP PIN (TYPE 316 STAINLESS STEEL)
  • 1 OUTSIDE OPERATING HANDLE WITH SCUFF LUG (TYPE 316 STAINLESS STEEL)
  • 1 HANDLE SPINDLE WELDED TO OUTSIDE HANDLE (TYPE 316 STAINLESS STEEL)
  • 2 SELF LUBRICATING FLANGED BEARINGS
  • 1 SELF LUBRICATING LINK PAD BEARING
  • 2 WASHERS (TYPE 316 STAINLESS STEEL)
  • 1 LOCK NUT (STAINLESS STEEL)
  • SPRING CLIP ASSEMBLY (VARIOUS MATERIALS)

WHAT IS IN AN OPERATING HANDLE BEARING AND WEAR PARTS KIT?

  • 2 SELF LUBRICATING FLANGED BEARINGS
  • 1 SELF LUBRICATING LINK PAD BEARING
  • 2 WASHERS (TYPE 316 STAINLESS STEEL)
  • 1 LOCK NUT (STAINLESS STEEL)


JUNIPER DOORS
QUICK ACTING DOORS
HANDLE ASSEMBLIES AND COMPONENTS

TO GET A QUICK PRICE QUOTATION
USE THE FORM BELOW OR CLICK HERE FOR A GENERIC FORM

HOW TO SELECT HANDLE ASSEMBLIES AND PARTS
CLICK ON A DOOR PART NUMBER TO HIGHLIGHT
ALL THE APPLICABLE KITS AND PARTS IN THIS TABLE
PLEASE SCROLL DOWN TO SEE THE WHOLE ORDER FORM
JUNIPER DOOR
PART NUMBER
 DOOR
SIZE
 DOOR
HAND
 NO. OF
DOGS
 JUNIPER OPERATING
HANDLE ASSEMBLY
JE215-DQ-01
 18 X 36
 L
 6
 JEOPA-L
JE215-DQ-02
 18 X 36
 R
 6
 JEOPA-K
JE215-DQ-03
 26 X 45
 L
 6
 JEOPA-L
JE215-DQ-04
 26 X 45
 R
 6
 JEOPA-K
JE215-DQ-05
 26 X 54
 L
 8
 JEOPA-F
JE215-DQ-06
 26 X 54
 R
 8
 JEOPA-E
JE215-DQ-07
 26 X 57
 L
 8
 JEOPA-F
JE215-DQ-08
 26 X 57
 R
 8
 JEOPA-E
JE215-DQ-09
 26 X 66
 L
 8
 JEOPA-F
JE215-DQ-10
 26 X 66
 R
 8
 JEOPA-E
JE215-DQ-11
 26 X 66
 L
 10
 JEOPA-F
JE215-DQ-12
 26 X 66
 R
 10
 JEOPA-E
JE215-DQ-13
 30 X 66
 L
 8
 JEOPA-F
JE215-DQ-14
 30 X 66
 R
 8
 JEOPA-E
JE215-DQ-15
 30 X 66
 L
 10
 JEOPA-F
JE215-DQ-16
 30 X 66
 R
 10
 JEOPA-E
JE215-DQ-17
 36 X 66
 L
 10
 JEOPA-F & FEOPA-G
JE215-DQ-18
 36 X 66
 R
 10
 JEOPA-E & FEOPA-H
JUNIPER PART NUMBER QUANTITY REQUIRED
COMPLETE HANDLE ASSEMBLIES
JEOPA-E
JEOPA-F
JEOPA-G
JEOPA-H
JEOPA-K
JEOPA-L
BEARING AND WEAR PARTS KIT (FOR ALL DOORS)
JEOPA-WP
OPERATING HANDLE PARTS:  OUTSIDE HANDLE WITH SCUFF LUG
JE216-96
JE216-97
JE216-98
JE216-99
JE216-100
JE216-101
OPERATING HANDLE PARTS:  SPINDLE
JE216-102
JE216-104
OPERATING HANDLE PARTS:  INSIDE HANDLE WITH STOP PIN & LINK PAD
JE216-94
JE216-95
OPERATING HANDLE PARTS:  BEARING KIT
2 FLANGED BEARINGS WITH SEAL, 2 WASHERS
JEADH-16-1
OPERATING HANDLE PARTS:  LINK PAD BEARING
JE216-66
OPERATING HANDLE PARTS:  LOCK NUT
JE216-86
OPERATING HANDLE PARTS:  SPRING CLIP ASSEMBLY WITH BRACKET
JE216-SCE
JE216-SCF
JE216-SCG
JE216-SCH
JE216-SCK
JE216-SCL
OPERATING HANDLE PARTS:  SPRING CLIP ONLY REPLACEMENT KIT
JE269-SCWP
OPERATING HANDLE PARTS:  SPRING CLIP BRACKET ONLY
JE216-117
JE216-118
JE216-119
JE216-120
