DOG ASSEMBLIES AND WEAR KITS
FOR JUNIPER QUICK ACTING ALUMINUM WATERTIGHT DOORS SERIES DQ-215

I.A.W. NAVSEA DWGS. 167-7044215 & 163-7044216

GENERAL INFORMATION

A QUICK ACTING DOG ASSEMBLY INCLUDES A TYPE 316 STAINLESS STEEL ROTATING DOG, SPRING, WASHER, SET SCREW, STAINLESS STEEL LOCK NUT, SELF-LUBRICATING STRAIGHT BEARING AND FLANGED BEARING. THE FLANGED BEARING INCLUDES AN INTERNAL SEAL AND EXTERNAL O-RING. THE DOG ASSEMBLY FITS THE DOG SPINDLE WHICH IS PART OF THE LEVER ASSEMBLIES.

THE SELF-LUBRICATING BEARING SYSTEM IS DESIGNED TO MINIMIZE MAINTENANCE.

ADDITIONAL PARTS THAT MAY BE NEEDED FOR REPAIR WORK OR NEW CONSTRUCTION ARE DOG SLEEVES, FRAME STIFFENERS AND WEDGES. WEDGES ARE AVAILABLE IN ALUMINUM BRONZE AND STAINLESS STEEL.

JUNIPER SUPPLIES SINGLE DOG ASSEMBLY KITS, WHOLE DOOR DOG ASSEMBLY KITS, SINGLE BEARING AND WEAR PARTS REPLACEMENT KITS AND WHOLE DOOR BEARING AND WEAR PART REPLACEMENT KITS. THE DIFFERENCE BETWEEN COMPLETE ASSEMBLY KITS AND WEAR PARTS KITS IS THAT EACH COMPLETE ASSEMBLY KIT INCLUDES A STAINLESS STEEL QUICK ACTING DOG.

JUNIPER DOORS
ALUMINUM QUICK ACTING DOORS
DOG ASSEMBLIES AND DOG COMPONENTS

TO GET A QUICK PRICE QUOTATION
USE THE FORM BELOW OR CLICK HERE FOR A GENERIC FORM

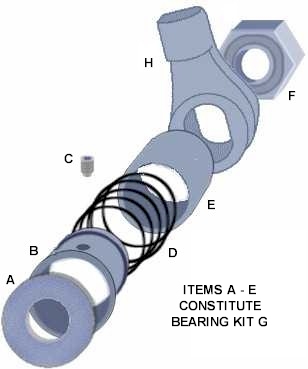

KEY	ITEM	JUNIPER PART NO.	QUANTITY REQUIRED
A	WASHER	N/A
B	FLANGED BEARING	N/A
C	SET SCREW	N/A
D	SPRING	N/A
E	STRAIGHT BEARING, STANDARD	N/A
F	LOCK NUT	JE216-86
G	BEARING KIT (PARTS A THROUGH E)	JEADD-16-1
H	QUICK ACTING DOG, TYPE 316 STAINLESS STEEL	JE216-77
COMPLETE DOG ASSEMBLY AND WEAR PARTS KITS DOG ASSEMBLY KITS INCLUDE 1 EACH ALL PARTS F, G AND H WEAR PARTS KITS INCLUDE 1 EACH PARTS F AND G
KIT TYPE		JUNIPER PART NO.	QUANTITY REQUIRED
QUICK ACTING DOG ASSEMBLY KIT		JEQDA-1
QA BEARING AND WEAR PARTS KIT		JEQBA-1
QA DOG KIT ALL SIX-DOG DOORS 6 EACH JEQDA-1		JEQDA-6
QA DOG KIT ALL EIGHT-DOG DOORS 8 EACH JEQDA-1		JEQDA-8
QA DOG KIT ALL TEN-DOG QA DOORS 10 EACH JEQD-1		JEQDA-10
BEARING AND WEAR PARTS KIT FOR ALL SIX-DOG QA DOORS 6 EACH JEQBA-1		JEQBA-6
BEARING AND WEAR PARTS KIT FOR ALL EIGHT-DOG QA DOORS 8 EACH JEQBA-1		JEQBA-8
BEARING AND WEAR PARTS KIT FOR ALL TEN-DOG QA DOORS 10 EACH JEQBA-1		JEQBA-10
