Juniper Industries Individual Dog Assemblies

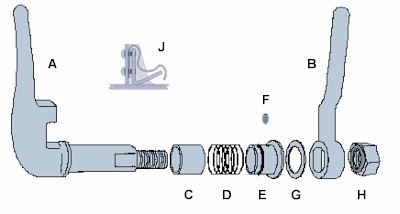

KEY	ITEM	JUNIPER PART NO.	QUANTITY REQUIRED
A	INDIVIDUAL DOG	JE218-1
B	INSIDE HANDLE	JE218-3
C - G	BEARING KIT (INCLUDES C THROUGH G LISTED BELOW)	JEAIDD-17-1
C	STRAIGHT BEARING
D	SPRING
E	FLANGED BEARING
F	SETSCREW
G	WASHER
H	LOCKNUT	JE216-86
N/A	SEAL WITH TEFLON RINGS (DARK RING ON FLANGED BEARING)	JE218-6
J	SPRING CLIP ASSEMBLY (RH WEDGE)	JE218-SCR
J	SPRING CLIP ASSEMBLY (LH WEDGE)	JE218-SCL
COMPLETE DOG ASSEMBLY AND WEAR PARTS KITS DOG ASSEMBLY KITS INCLUDE 1 EACH ALL PARTS A THROUGH H PLUS SEAL WEAR PARTS KITS INCLUDE 1 EACH ALL PARTS C THROUGH H PLUS SEAL
KIT TYPE		JUNIPER PART NO.	QUANTITY REQUIRED
INDIVIDUAL DOG ASSEMBLY KIT, STANDARD		JEIDA-1
ID BEARING WEAR PARTS KIT		JEIBA-1
ID DOG KIT ALL FOUR-DOG DOORS 4 EACH JEIDA-1		JEIDA-4
ID DOG KIT ALL SIX-DOG DOORS 6 EACH JEIDA-1		JEIDA-6
ID DOG KIT ALL EIGHT-DOG DOORS 8 EACH JEIDA-1		JEIDA-8
ID DOG KIT ALL TEN-DOG DOORS 10 EACH JEIDA-1		JEIDA-10
BEARING AND WEAR PARTS KIT FOR ALL FOUR-DOG ID DOORS 4 EACH JEIBA-1		JEIBA-4
BEARING AND WEAR PARTS KIT FOR ALL SIX-DOG ID DOORS 6 EACH JEIBA-1		JEIBA-6
BEARING AND WEAR PARTS KIT FOR ALL EIGHT-DOG ID DOORS 8 EACH JEIBA-1		JEIBA-8
BEARING AND WEAR PARTS KIT FOR ALL TEN-DOG ID DOORS 10 EACH JEIBA-1		JEIBA-10
